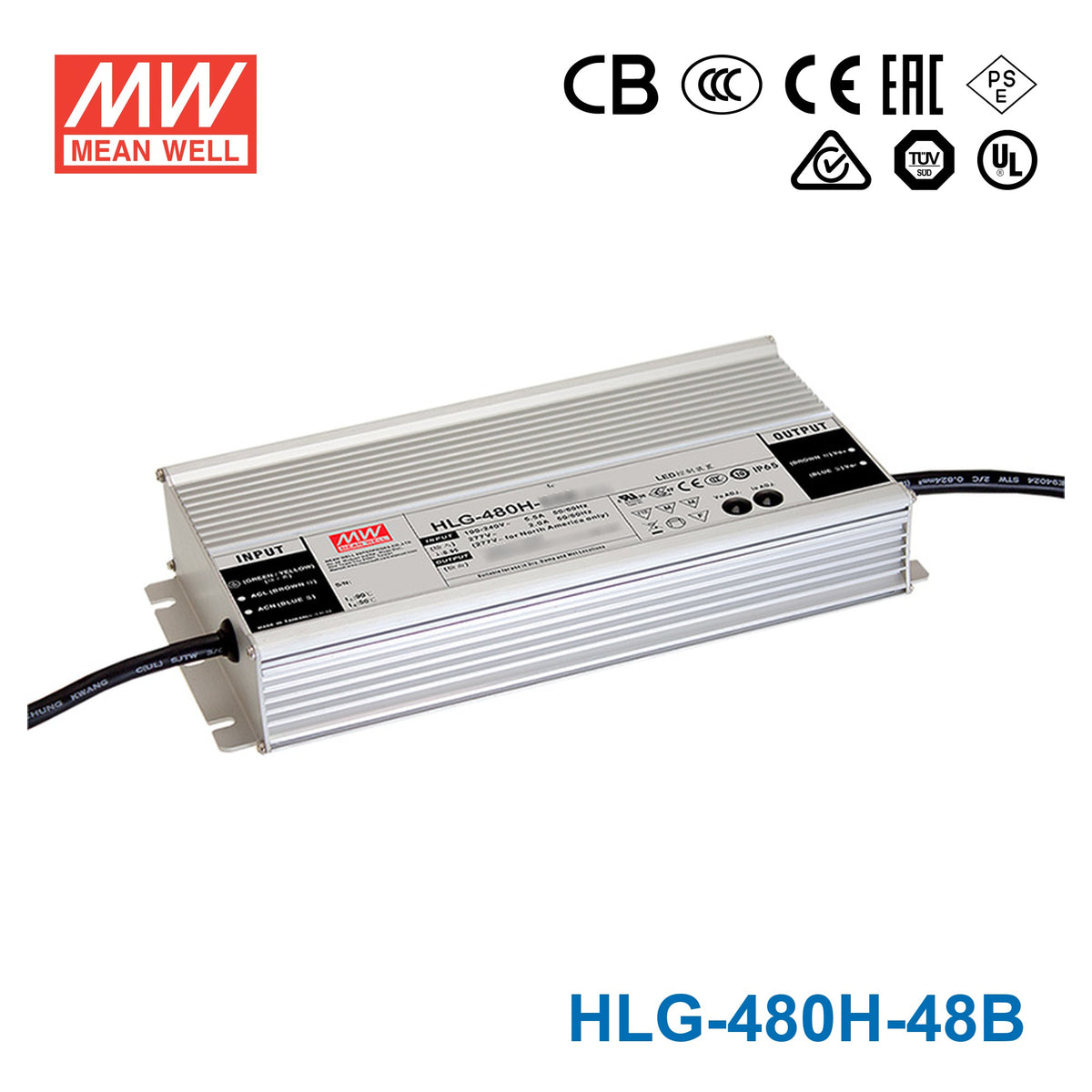

Mean Well HLG-480H-48B Power Supply 480W 48V - Dimmable

Name: Mean Well HLG-480H-48B Power Supply 480W 48V- Dimmable 10A
Brand: Mean Well
SKU: HLG-480H-48B
Price: 153.39 USD
Availability: InStock

Overview

HLG-480H-48B is the 48V output model of this series: rated current 10A, rated power 480W, typical efficiency 94.5%.

HLG-480H series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-480H operates from 90～305VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HLG-480H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off, isolated design) ; smart timer dimming; junction box
Typical lifettime > 62000 hours
7 years warranty (Note.9)

Specifications

HLG-480H-48BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.4: 24 ~ 48V
RATED CURRENT: 10A
RATED POWER: 480W
RIPPLE & NOISE (max.)^Note.2: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 40.8 ~ 50.4V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 5 ~ 10A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms 115VAC/230VAC
HOLD UP TIME (Typ.): 16ms 115VAC/230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.97/230VAC, PF≧0.95/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧40% / 115VAC,230VAC,277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.) 230VAC: 94.5%
EFFICIENCY (Typ.) 277VAC: 95%
AC CURRENT (Typ.): 5A / 115VAC 2.45A / 230VAC 2A / 277VAC
INRUSH CURRENT(Typ.): COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
LEAKAGE CURRENT: <0.75mA / 277VAC
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2unit(circuit breaker of type B) / 3units(circuit breaker of type C) at 230VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 53 ~ 63V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016;KC61347-1, KC61347-2-13(except for AB,Dx type), J61347-1(H29), J61347-2-13(H29)(except for Dx type)approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3;GB/T 17743, GB17625.1, EAC TP TC 020;KC KN15,KN61547(except for AB,Dx type),J55015(H29)(for Blank/A-type)
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 ;KC KN15,KN61547( except for AB,Dx type ),J55015(H29)(for Blank/A-type)

OTHERS

MTBF: 1185.9K hrs min. Telcordia SR-332(Bellcore) ; 95.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 262*125*43.8mm (L*W*H)
PACKING: 2.8Kg;4pcs/12.2Kg/0.55CUFT

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-480H-48B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-480H-48B DIMMING OPERATION — DIMMING OPERATION

HLG-480H-48B Outputcurrent(%) — Outputcurrent(%)

HLG-480H-48B ◎ Applying additive resistance — ◎ Applying additive resistance

HLG-480H-48B ※ Smart timer dimming function (for Dxx-Type by User… — ※ Smart timer dimming function (for Dxx-Type by User…

Ex: ◎ D02-Type: the profile recommended for street lighting

Ex: ◎ D03-Type: the profile recommended for tunnel lighting

HLG-480H-48B OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-480H-48B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-480H-48B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-480H-48B LIFETIME(Kh) — LIFETIME(Kh)

HLG-480H-48B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED Harboure
LED greenhouse lighting
LED statium lighting
LED mining lighting
Type "HL" for use in ClassⅠ,Division 2 hazardous(Classified) location

Downloads

Certificates10

Mean Well HLG-480H PSE Certificate PDF Download

Mean Well HLG-480H KC Certificate PDF Download

Mean Well HLG-480H GlobalMark Certificate PDF Download

Mean Well HLG-480H ENEC Certificate PDF Download

Mean Well HLG-480H CCC Certificate PDF Download

Mean Well HLG-480H CB Certificate PDF Download

Mean Well HLG-480H EMC Certificate PDF Download

Mean Well HLG-480H CE Certificate PDF Download

Mean Well HLG-480H UK Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well HLG-480H-48 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-480H-48B to power 48V LED strip lighting outdoors with dimming?

Yes. The HLG-480H-48B outputs 48V at up to 10A (480W) and includes a 3-in-1 dimming input (0-10VDC, 10V PWM or resistance) for brightness control. Its IP67 waterproof rating allows mounting in fully exposed outdoor locations, including direct rain exposure.

Is the HLG-480H-48B a good choice for large outdoor 48V LED signage?

Yes. With 480W at 48V and IP67 waterproofing, this driver is designed for exposed outdoor installations. The dimming input lets you reduce sign brightness at night to save energy or meet local ordinances, using an external 0-10VDC, 10V PWM or resistance dimming signal.

Can the HLG-480H-48B power 48V LED fixtures on a building facade?

Yes. Its 480W capacity and IP67 waterproof rating make it suitable for facade wash lights, cove lighting, or architectural accent lighting that uses 48V LED fixtures. The dimming input supports scene control or daylight-responsive dimming through an external controller.

How many meters of 48V LED strip can the HLG-480H-48B drive?

That depends on the strip's rated power per meter. The HLG-480H-48B supplies up to 480W at 48V. For a strip rated at 15W/m, you could run up to 32 meters (480W / 15W per meter = 32m). Always check your strip's rated power per meter and keep the total load at or below 480W.

Can the HLG-480H-48B handle extreme outdoor temperatures?

Yes, within its derating limits. The HLG-480H-48B is rated for a case temperature (Tcase) of -40°C to +90°C, suiting freezing climates; at rated current in constant-current mode the maximum ambient is about 60°C (230VAC), so plan derating for hot rooftop installations. Combined with its IP67 waterproof rating, it can withstand rain, snow, and dust without a secondary enclosure.
