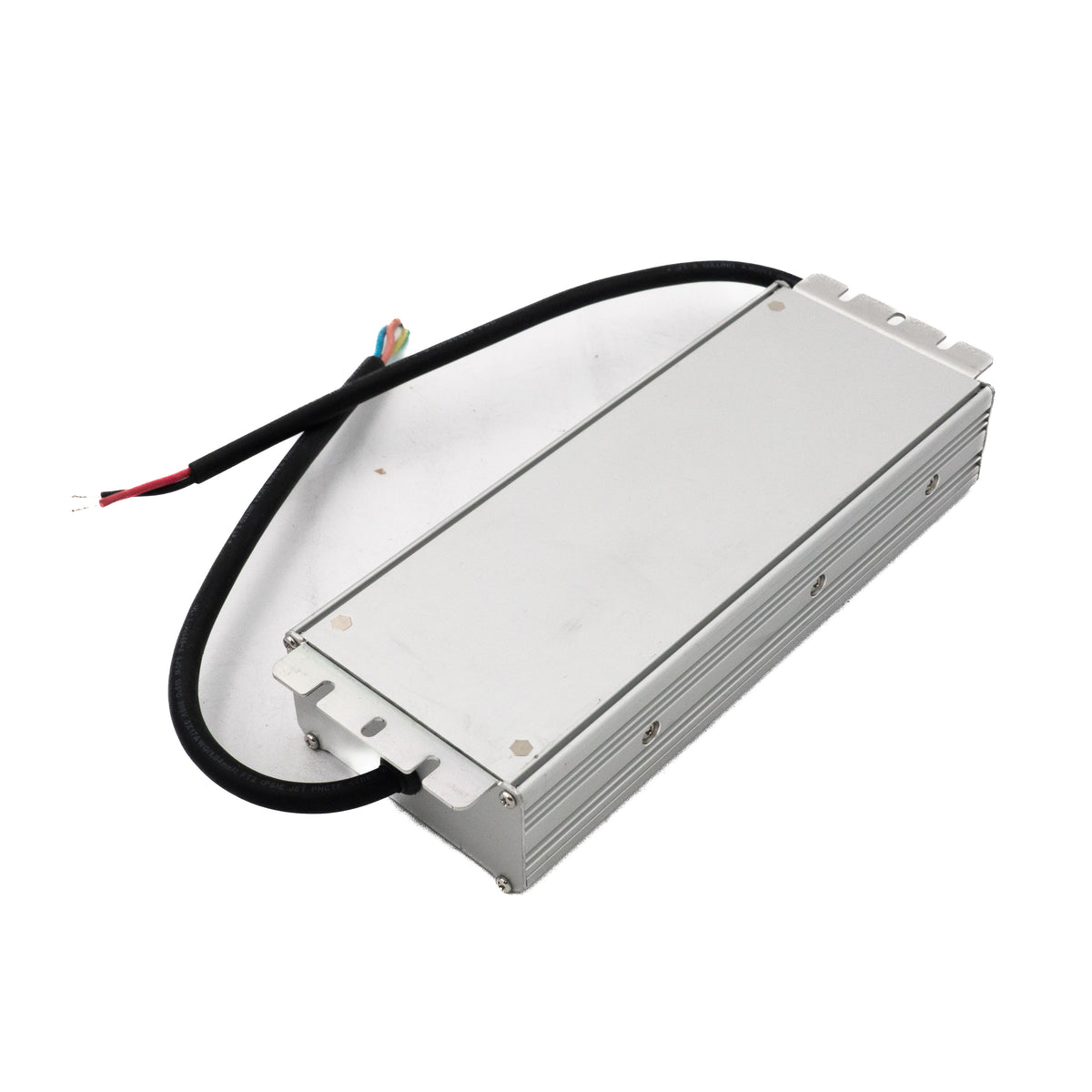

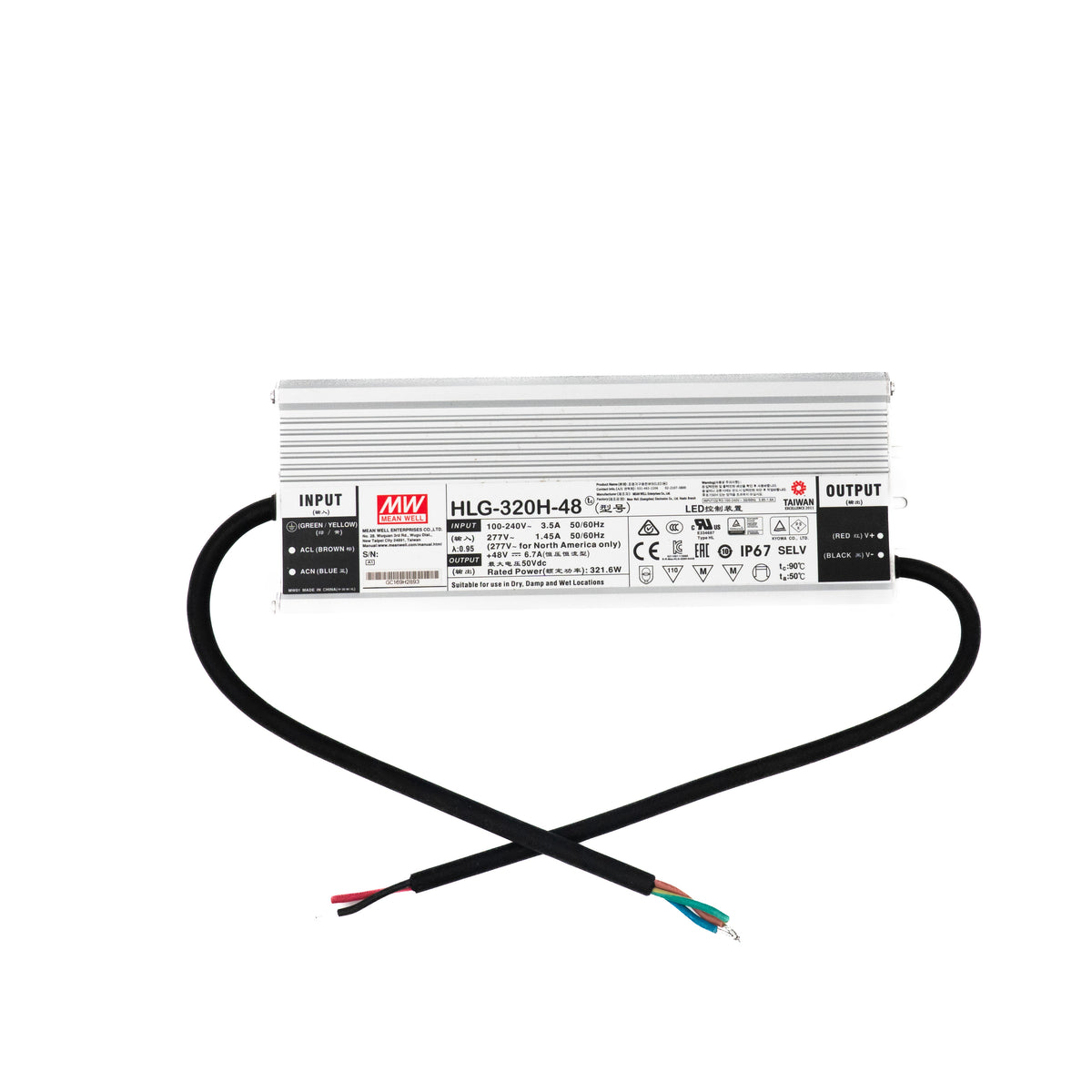

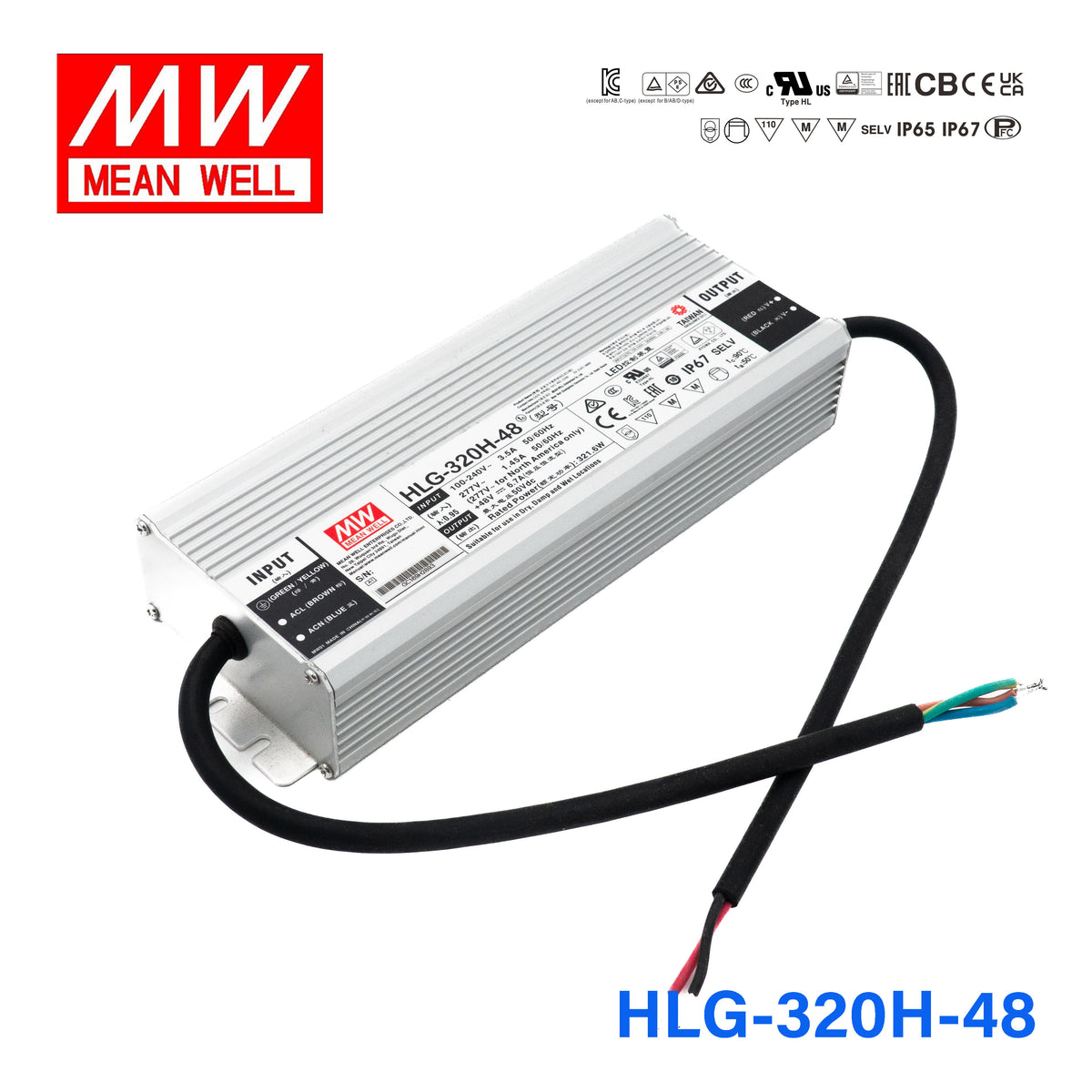

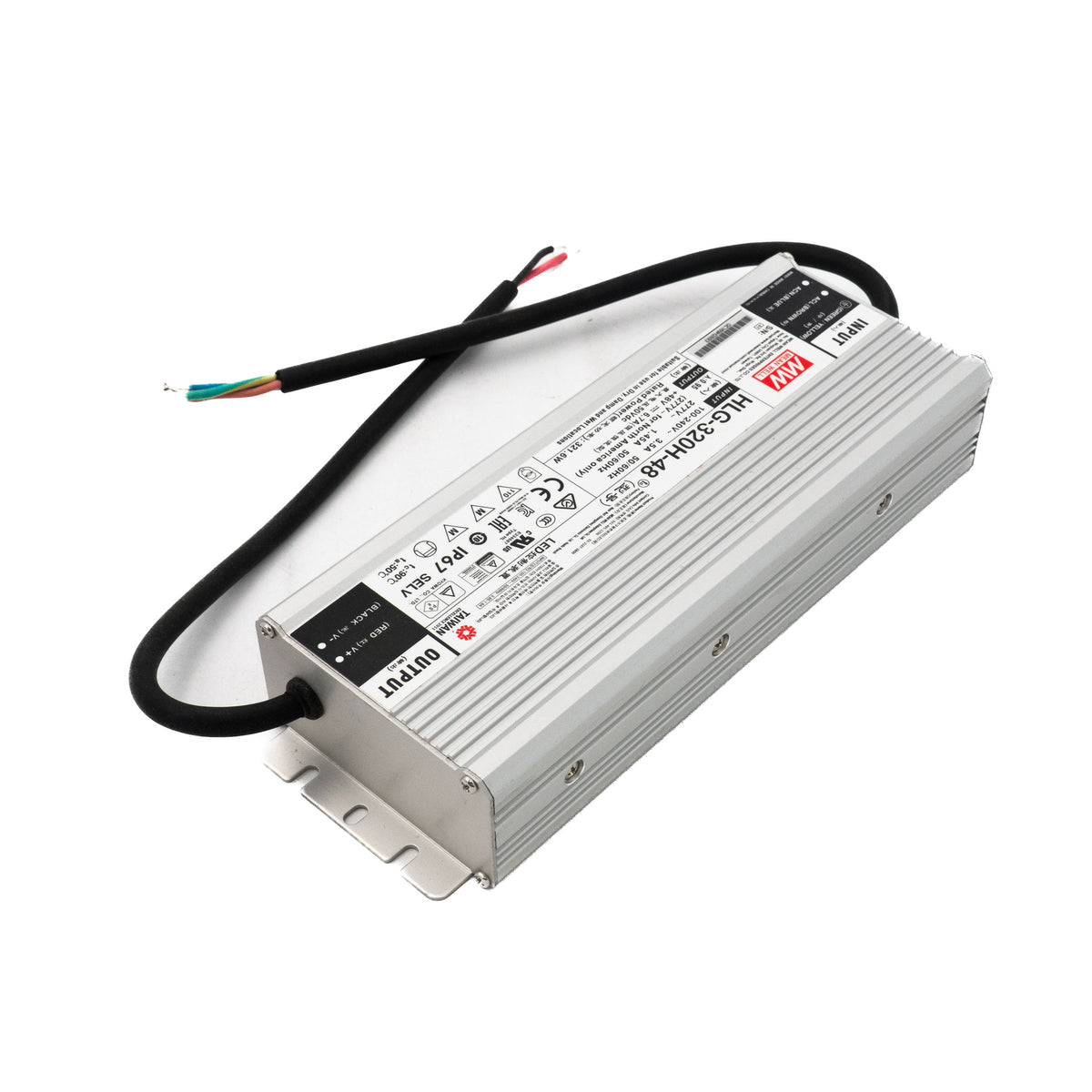

Mean Well HLG-320H-48 Power Supply 320W 48V 6.7A
Overview
HLG-320H-48 is the 48V output model of this series: rated current 6.7A, rated power 321.6W, typical efficiency 95%.
HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-320H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming
- Typical lifettime > 62000 hours
- 7 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- CONSTANT CURRENT REGIONNote.4
- 24 ~ 48V
- RATED CURRENT
- 6.7A
- RATED POWER
- 321.6W
- RIPPLE & NOISE (max.)Note.2
- 250mVp-p
- VOLTAGE ADJ. RANGE
- 43 ~ 52V
- CURRENT ADJ. RANGE
- 3.35 ~ 6.7A
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 2500ms,80ms/115VAC 600ms,80ms/230VAC
- HOLD UP TIME (Typ.)
- 15ms / 115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
- EFFICIENCY (Typ.) (230Vac)
- 95%
- EFFICIENCY (Typ.) (277Vac)
- 95%
- AC CURRENT (Typ.)
- 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 70A(twidth=1010μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENTNote.4
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 53.5 ~ 60V
- OVER TEMPERATURE
- Shut down and latch off o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase= +90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213; IP65 or IP67 (except for HLG-320H C-type); J61347-1, J61347-2-13 (except for C-type), EAC TP TC 004;KC61347-1,KC61347-2-13(except for AB,C-type), BIS IS 15885(Part2/Sec13) (NOTE 13) approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 1702.2K hrs min. Telcordia SR-332 (Bellcore) ; 157.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 252*90*43.8mm (L*W*H)
- PACKING
- 1.88Kg; 8pcs/16Kg/0.92CUFT
Test conditions and notes14
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Please refer to "DRIVING METHODS OF LED MODULE".
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 13. BIS certification is for HLG-320H-A only, but products sourced from Taiwan do not have the BIS logo, please contact your MEAN WELL sales for more information.
- 14. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the HLG-320H-48 to power 48V LED strip lighting outdoors?
Yes. The HLG-320H-48 outputs 48V at up to 6.7A (320W), and its IP65/IP67-rated metal housing is designed for indoor and outdoor applications, making it suitable for outdoor 48V LED strip installations. Its -40°C to +90°C case-temperature (Tcase) range handles harsh weather, with derating at high temperature.
Is the HLG-320H-48 suitable for powering 48V LED high-bay warehouse lighting?
Yes. At 320W it can drive one or more 48V high-bay LED fixtures. The constant-current mode with a CC voltage range of 24-48V accommodates slight voltage differences between fixtures. Its wide 90-305VAC input works with most industrial power supplies.
Can I use the HLG-320H-48 for 48V commercial LED signage?
Yes. With 320W at 48V, the HLG-320H-48 can drive large 48V LED sign modules, channel letters, or light boxes. The IP65/IP67-rated metal housing is designed for outdoor mounting, and the series has a typical life expectancy above 62,000 hours at Tcase of about 75°C.
How many meters of 48V LED strip can the HLG-320H-48 power?
Divide 320W by your strip's rated power per meter. For example, a 48V strip rated at 10W/m would allow up to 32 meters (320W / 10W per meter = 32m). Always check your strip's rated power per meter and keep total load at or below 320W.
Can the HLG-320H-48 be mounted in a below-grade vault or wet-location junction box?
The HLG-320H series is rated IP65 or IP67 depending on type, and its metal housing is designed for indoor and outdoor applications, but the datasheet does not state a submersion depth. Check the rating of your type and the IP installation cautions in MEAN WELL's user manual before installing it in below-grade vaults or wet-location junction boxes.
Does the HLG-320H-48 operate reliably in extreme cold or hot environments?
Yes. Its case temperature (Tcase) range is -40°C to +90°C, covering extreme winter cold, with output derating at high temperatures per the load vs temperature curve. The fanless metal housing is cooled by free-air convection, which matters in enclosed or rooftop installations during summer.
