ENVO EV-SP-80-24US-TDM Triac Dimmable LED Driver 80W 24V 3.33A

Name: ENVO EV-SP-80-24US-TDM Triac Dimmable LED Driver 80W 24V 3.33A
Brand: Envo
SKU: EV-SP-80-24US-TDM
Price: 29.89 USD
Availability: InStock

108~132VAC US inputno minimum loadingPF>0.95

SKU EV-SP-80-24US-TDM

$29.89 USD

Shipping calculated at checkout.

Select model — 3 in this family

EV-SP-80-24US-TDM

EV-SP-30-24US-TDM 24V 30W In stock$13.72 USD

EV-SP-60-24US-TDM 24V 60W In stock$29.16 USD

EV-SP-80-24US-TDM 24V 80W In stock$29.89 USD

Product variants

In stock

Overview

EV-SP-80-24US-TDM is the model of this series: typical efficiency 85%.

The EV-SP80 series is an indoor triac dimming CV LED power supply. Its input voltage is 108-132Vac, with high efficiency up to 85%, operating in the temperature range of -20°C to +40°C under free air convection. It features an ultra-high power factor, low THD, lightning protection, and full protection functions, which not only greatly improve the reliability of the product but also ensure its life cycle. This series is designed for LED lighting, suitable for indoor CV triac dimming lighting use.

Features

Adapt to American standard input voltage (90-132Vac)
Active PFC function
Suitable for dry environment
Protections: Short circuit / Overtemperature / Overvoltage
Plastic case
Load range 10-100%, Dimming range 0-100%
No flicker
5 years warranty

Specifications

EV-SP-80-24US-TDMSpecifications from the official datasheetDownload datasheet PDF

Model

Rated output voltage: 24V
Rated output current: 0-3.33A
Max. output power: 80W
Output voltage tolerance: ±5%
THD (Typ.): 10%
Power factor (Typ.): 0.95
Efficiency (Typ.): 85%

Input

Rated input voltage: 120Vac Derating curve is shown in the figure
Input voltage: 108Vac ~ 132Vac
Input frequency: 47Hz ~ 63Hz
Max. input current: 1.2A 108Vac, Full Load 1A 120Vac, Full Load
Input inrush current: 75A 120Vac/50Hz, Cold start
Power factor: 0.95 120Vac, Full Load
Total harmonic input: 10% ~ 15% 120Vac, Full Load
Leakage current: 0.5mA 120Vac/60Hz, Full Load
Stand-by power consumption: 1.5W ~ 2W 120Vac/60Hz, No Load

Output

Output voltage Range: 22.8-25.2VDC
Rated output current: 3.33A
Output current range: 0-3.33A
Rated output power: 80W
Rated output efficiency: 85%
Output voltage tolerance: ±5%
Output voltage ripple (PK-PK): ±3%
Rise time: -
Startup time: -
Line regulation: ±1%
Load regulation: ±2%

Protection

Over load: 1.1 to 1.6 times rated load Auto-recovery after overload removed
Short circuit: - Hiccup mode, auto-recovery after short circuit removed
Over voltage: ≤1.5 times of rated output voltage Remove overvoltage, can be restored after restart
Over temperature: 110°C Remove overtemperature, can be restored after the temperature returns to normal levels.

Environment Requirement

Working temp.: -20°C ~ +40°C
Storage temp.: -40°C ~ +85°C
Working humidity: 45%RH ~ 85%RH
Storage humidity: 5%RH ~ 95%RH
IP grade: IP20
Cooling mode: Natural cooling

Safety&EMC Standard

UL/CUL: UL8750
Dielectric compressive strength: Parameter Standard Test Level

Input to output 1800Vac/5mA Max/60s Strengthened insulation, no breakdown, no flashover
Insulation resistance: Parameter Standard Test Level

Input to output ≥ 10MΩ Test voltage: 500Vdc
Leakage current: Parameter Standard

≤ 0.5 mA 120Vac
Conduction CE: Fcc Part 15B
Radiation RE: Fcc Part 15B

Others

Lifetime: 30,000 hours 120Vac Full load TC:80°C
MTBF: 200,000 hours 120Vac, Full load, 25°C MIL-HDBK-217F)
TC: 90°C
Warranty: 5 years TC:80°C
Weight: 360g±10g
Dimensions: 217.25*60.35*21.2mm L x W x H

Certifications & ratings

Certification marks: UL, CUL

Test conditions and notes1

Remark: All parameters not specially mentioned are measured at 120VAC input, full load, and 25°C ambient temperature.

Technical drawings

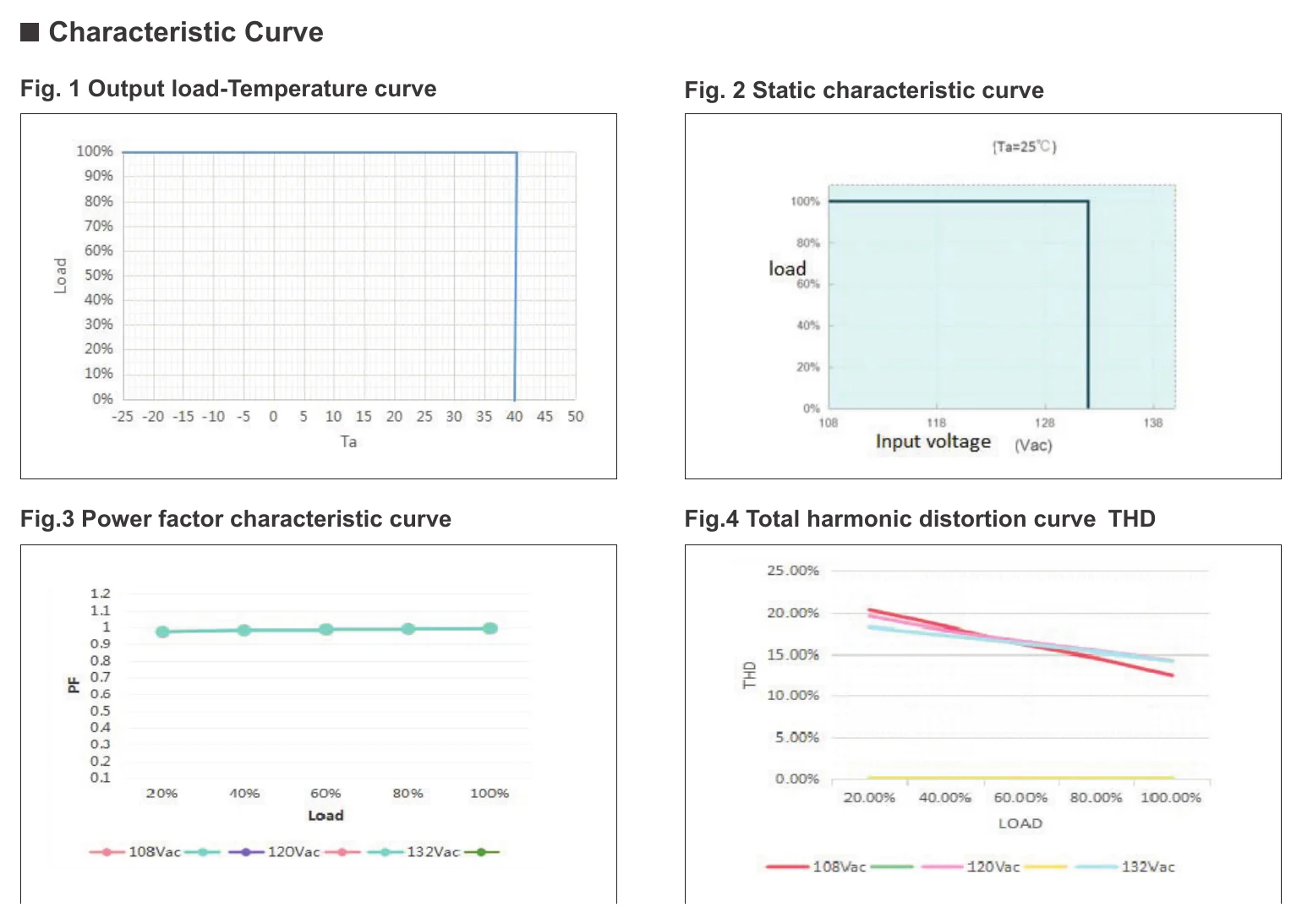

EV-SP-80-24US-TDM Characteristic Curve — Characteristic Curve

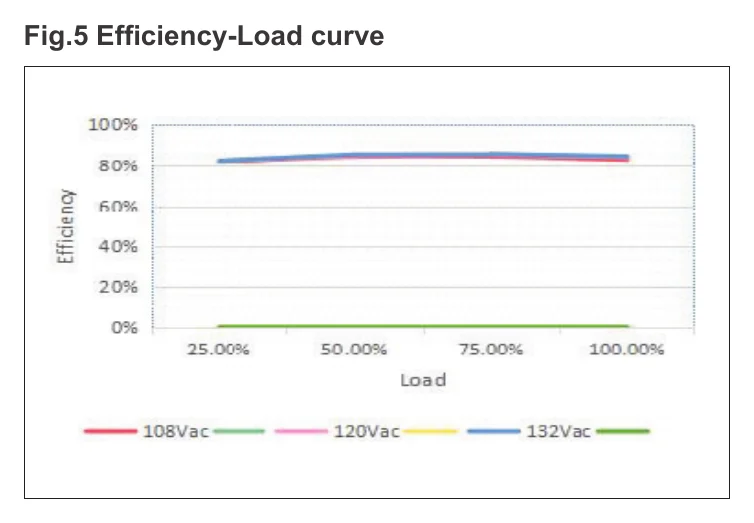

EV-SP-80-24US-TDM Fig.5 Efficiency-Load curve — Fig.5 Efficiency-Load curve

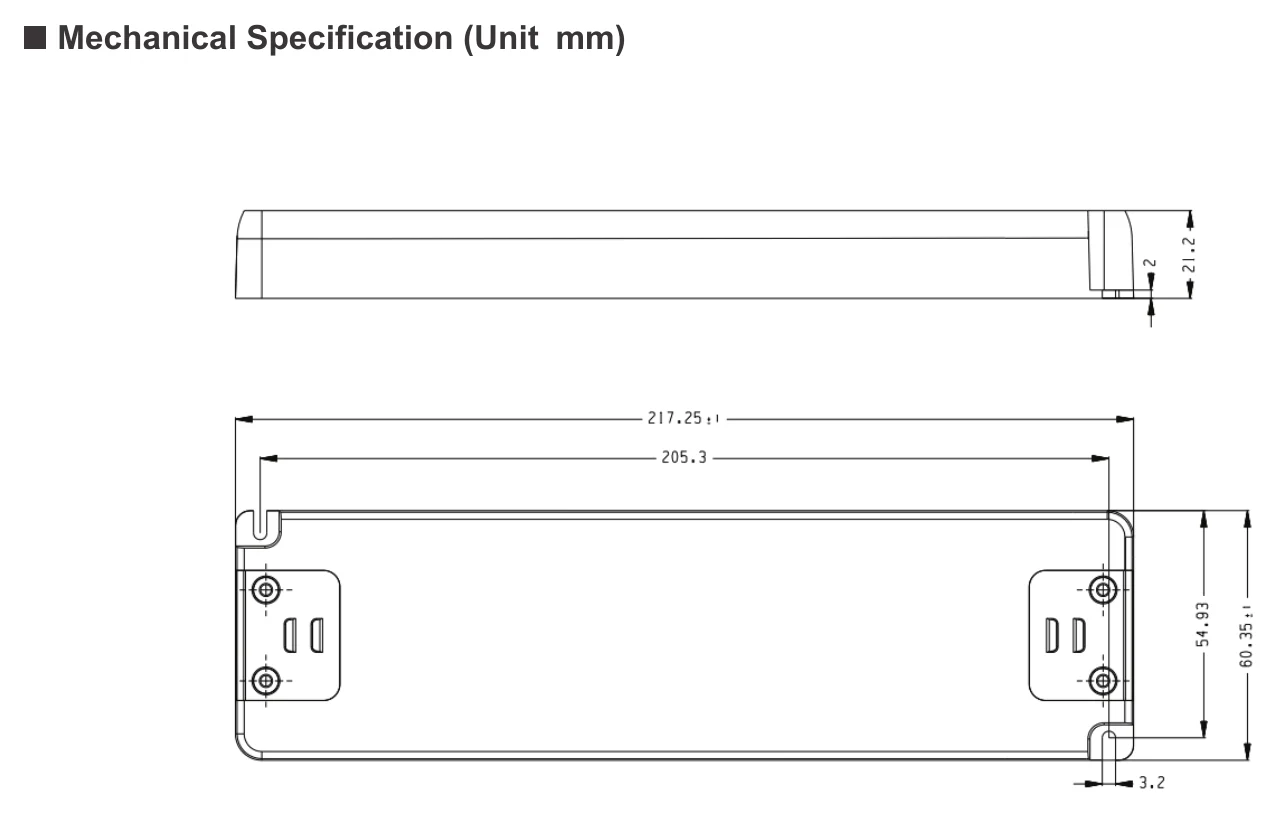

EV-SP-80-24US-TDM Mechanical Specification (Unit mm) — Mechanical Specification (Unit mm)

EV-SP-80-24US-TDM Mechanical Specification (Unit mm) (2) — Mechanical Specification (Unit mm) (2)

Downloads

Datasheet1

EV-SP-80-24US-TDM datasheetEV_SP_80_24US_TDM.pdf PDF Download
