ENVO EV-SP-60-24US-TDM Triac Dimmable LED Driver 60W 24V 2.5A

Name: ENVO EV-SP-60-24US-TDM Triac Dimmable LED Driver 60W 24V 2.5A
Brand: Envo
SKU: EV-SP-60-24US-TDM
Price: 29.16 USD
Availability: InStock

90~132VAC US inputno minimum loadingPF>0.95

SKU EV-SP-60-24US-TDM

$29.16 USD

Shipping calculated at checkout.

Select model — 3 in this family

EV-SP-60-24US-TDM

EV-SP-30-24US-TDM 24V 30W In stock$13.72 USD

EV-SP-60-24US-TDM 24V 60W In stock$29.16 USD

EV-SP-80-24US-TDM 24V 80W In stock$29.89 USD

Product variants

In stock

Overview

The EV-SP30 series is an indoor triac dimming constant voltage LED power supply with an input voltage range of 90-132Vac and efficiency up to 85%. It operates in the temperature range of -20°C to +40°C. It features a high power factor, ultra-low total harmonic distortion, low standby power consumption, and lightning protection, along with all-round protection functions. These features not only greatly improve the reliability of the product but also guarantee its life cycle. This series is designed for LED lighting and is applied to indoor triac dimming LED lighting.

Features

Adapt to American standard input voltage (90-132Vac)
Active PFC function
Suitable for dry environment
Protections: Short circuit / Overtemperature / Overvoltage
Plastic case
Load range 10-100%, Dimming range 0-100%
No flicker
5 years warranty

Specifications

EV-SP-60-24US-TDMSpecifications from the official datasheetDownload datasheet PDF

Input

Rated input voltage: 100Vac - 120Vac
Input voltage: 90Vac - 132Vac
Input frequency: 47Hz - 63Hz
Max. input current: 0.9A 100Vac, Full Load 0.75A 120Vac, Full Load
Input inrush current: 75A 120Vac/50Hz, Cold start
Power factor: 0.95 120Vac, Full Load
Total harmonic input: 15% 20% 120Vac, Full Load
Leakage current: 0.7mA 120Vac/60Hz, Full Load
Stand-by power consumption: 1.5W 0.5W 120Vac/60Hz, No Load

Output

Output voltage Range: 22.8-25.2VDC
Rated output current: 2.5A
Output current range: 0-2.5A
Rated output power: 60W
Rated output efficiency: 85%
Output voltage tolerance: ±5%
Output voltage ripple (PK-PK): ±3%
Rise time: -
Startup time: -
Line regulation: ±1%
Load regulation: ±2%

Protection

Over load: 1.1 to 1.6 times rated load Auto-recovery after overload removed
Short circuit: Hiccup mode Hiccup mode, auto-recovery after short circuit removed
Over voltage: ≤ 1.5 times of rated output voltage Auto-recovery after removing the overvoltage fault and turning the power back on
Over temperature: 110°C Auto-recovery after removing the overtemperature fault and turning the power back on

Environment Requirement

Working temp.: -20°C 25°C +40°C Shown in Fig.1
Storage temp.: -40°C 25°C +85°C
Working humidity: 45%RH 85%RH
Storage humidity: 5%RH 95%RH
IP grade: IP20
Cooling mode: Natural cooling

Safety&EMC Standard

UL/CUL: UL8750
Dielectric compressive strength: Parameter Standard Test Level

Input to output 1800Vac/5mA Max/60s Strengthened insulation, no breakdown, no flashover
Insulation resistance: Parameter Standard Test Level

Input to output ≥ 10MΩ Test voltage: 500 Vdc
Leakage current: Parameter Standard

≤ 0.75 mA 120Vac
Conduction CE: Fcc Part 15B
Radiation RE: Fcc Part 15B

Others

Lifetime: 30,000 hours 120Vac Full load TC:80°C
MTBF: 200,000 hours 230Vac, Full load, 25°CMIL-HDBK-217F)
TC: 90°C
Warranty: 5 years TC:80°C
Weight: 350g±10g
Dimensions: 217.25*60.35*21.2mm LxWxH

Test conditions and notes1

Remark: All parameters not specially mentioned are measured at 120VAC input, full load, and 25°C ambient temperature.

Technical drawings

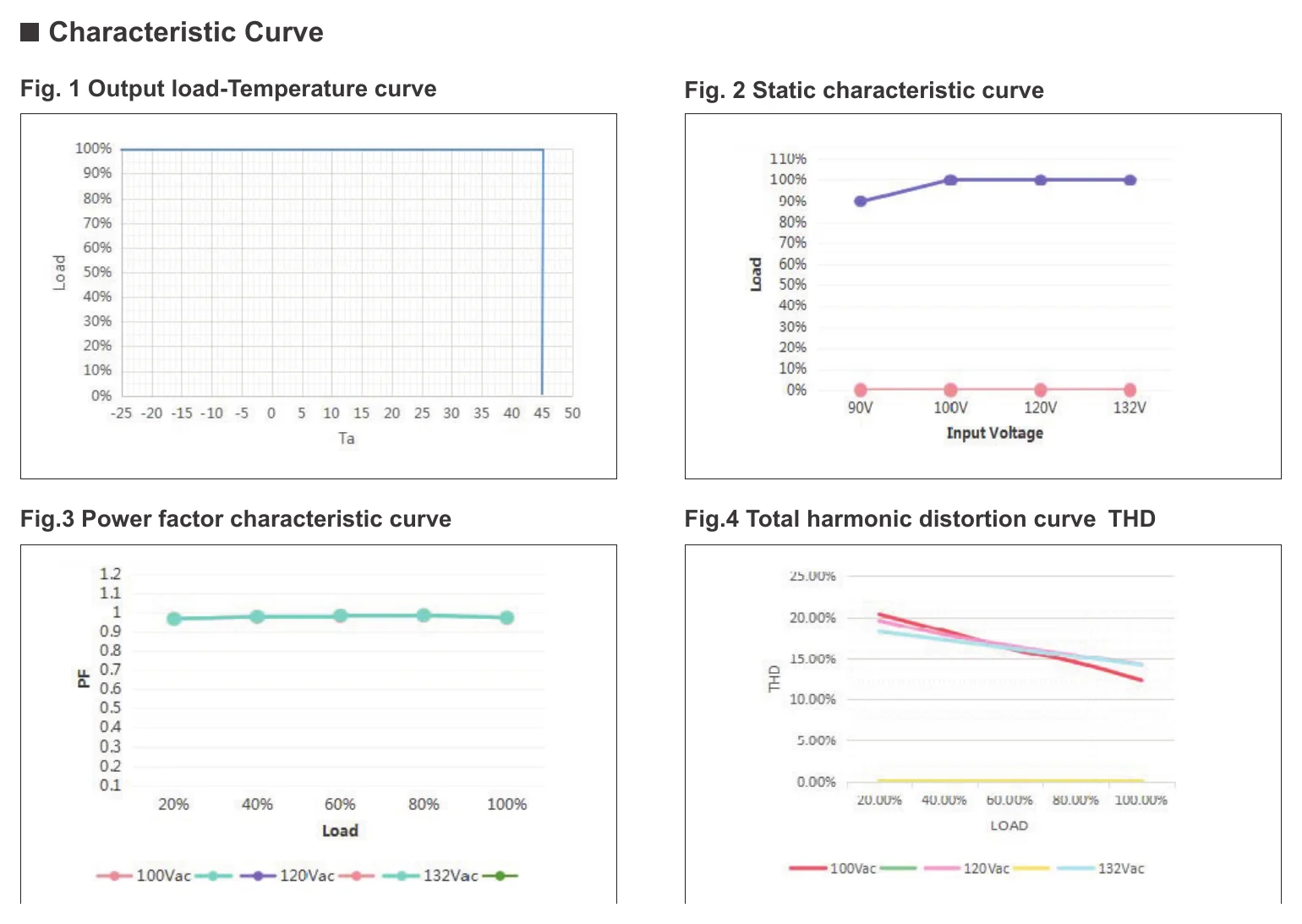

EV-SP-60-24US-TDM Characteristic Curve — Characteristic Curve

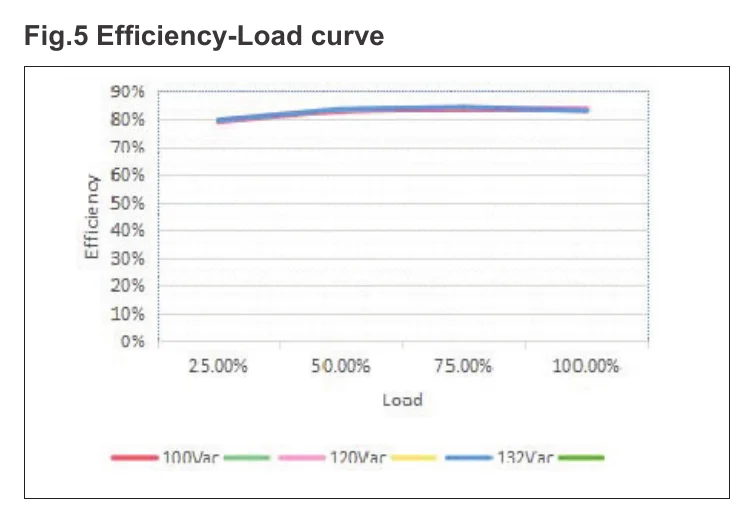

EV-SP-60-24US-TDM Fig.5 Efficiency-Load curve — Fig.5 Efficiency-Load curve

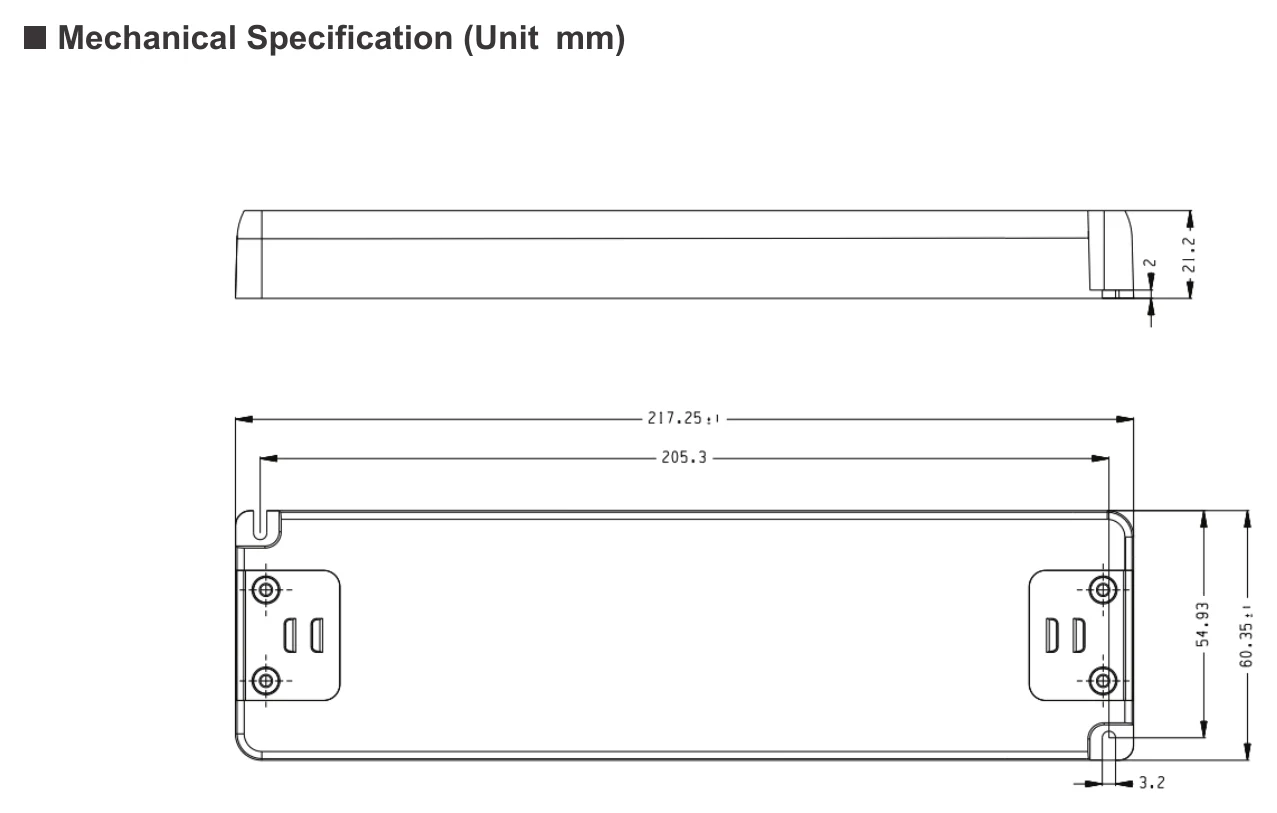

EV-SP-60-24US-TDM Mechanical Specification (Unit mm) — Mechanical Specification (Unit mm)

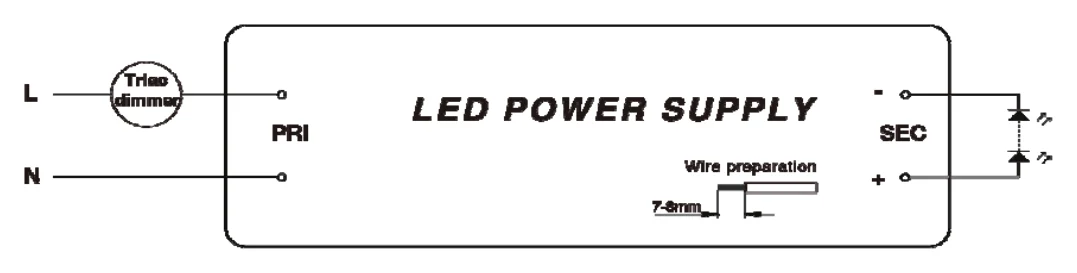

EV-SP-60-24US-TDM Mechanical Specification (Unit mm) (2) — Mechanical Specification (Unit mm) (2)

Downloads

Datasheet1

EV-SP-60-24US-TDM datasheetEV_SP_60_24US_TDM.pdf PDF Download
