ENVO EV-SP-30-24US-TDM Triac Dimmable LED Driver 30W 24V 1.25A

108~132VAC US inputminimum loading 6W
SKU EV-SP-30-24US-TDM
$13.72 USD
Shipping calculated at checkout.

Select model — 3 in this family

EV-SP-30-24US-TDM
In stock
|

Overview

The EV-SP30 series is an indoor triac dimming CV LED power supply. Its input voltage is 120VAC, and it operates in the temperature range of -20°C to +45°C with natural cooling enclosure. This product offers high cost performance. To enhance the safety of the product, open circuit, short circuit, and overload protection functions are integrated into the circuit. This series is designed for LED lighting and is applied to indoor lighting. It is suitable for almost all indoor applications where LED lamps can be installed. The product complies with world lighting equipment safety specifications, ensuring the safety of users and the lighting system during installation.

Features

  • Suitable for leading-edge and trailing-edge triac dimmer
  • American standard input voltage (120VAC)
  • High PF, IP20
  • Suitable for dry environment
  • Protections: Open circuit / Short circuit / Overload
  • Adopt plastic case and internal glue potting
  • Compliance with worldwide safety regulations for lighting
  • 5 years warranty

Specifications

EV-SP-30-24US-TDMSpecifications from the official datasheetDownload datasheet PDF

Input

Rated input voltage
120Vac
Input voltage
108Vac ~ 132Vac
Input frequency
60Hz
Max. Input current
0.39A (120Vac/60Hz, Full Load)
Input inrush current
75A (120Vac/60Hz, Cold start)
Leakage current
0.7mA (120Vac/60Hz, Full Load)
Stand-by power consumption
0.2W-0.5W (120Vac/60Hz, No Load)

Output

Output voltage Range
24VDC
Rated output current
1.25A
Output current range
0.25-1.25A
Rated output power
30W
Rated output efficiency
≥83% (120Vac)
Output voltage precision
±5%
Output voltage ripple (PK-PK)
<20% (Full load, Test under 20M bandwidth)
Line regulation
±3%
Load regulation
±5%
Rated output voltage
24V±5%
Power factor (Typ.)
0.9
Efficiency (Typ.)
≥83%
Dimming range
20%-90%
Input power
<38W

Others

Lifetime
30,000 hours (120Vac Full load TC:75°C)
Weight
135g
Dimensions
158mm*45.8mm*18.3mm

Environment

Storage temp.
-40°C ~ +85°C
Storage humidity
5%RH ~ 95%RH

Certifications & ratings

Safety standards
UL8750, UL1310
Certification marks
CE
Test conditions and notes1
  1. Remark: All parameters not specially mentioned are measured at 120VAC input, full load, and 25°C ambient temperature.

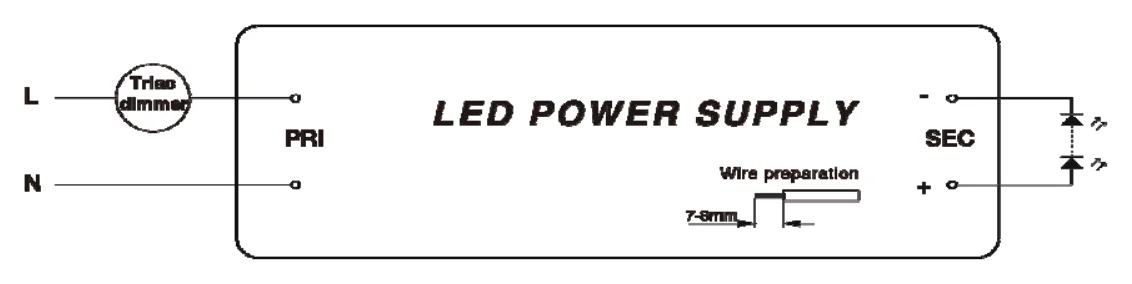

Technical drawings

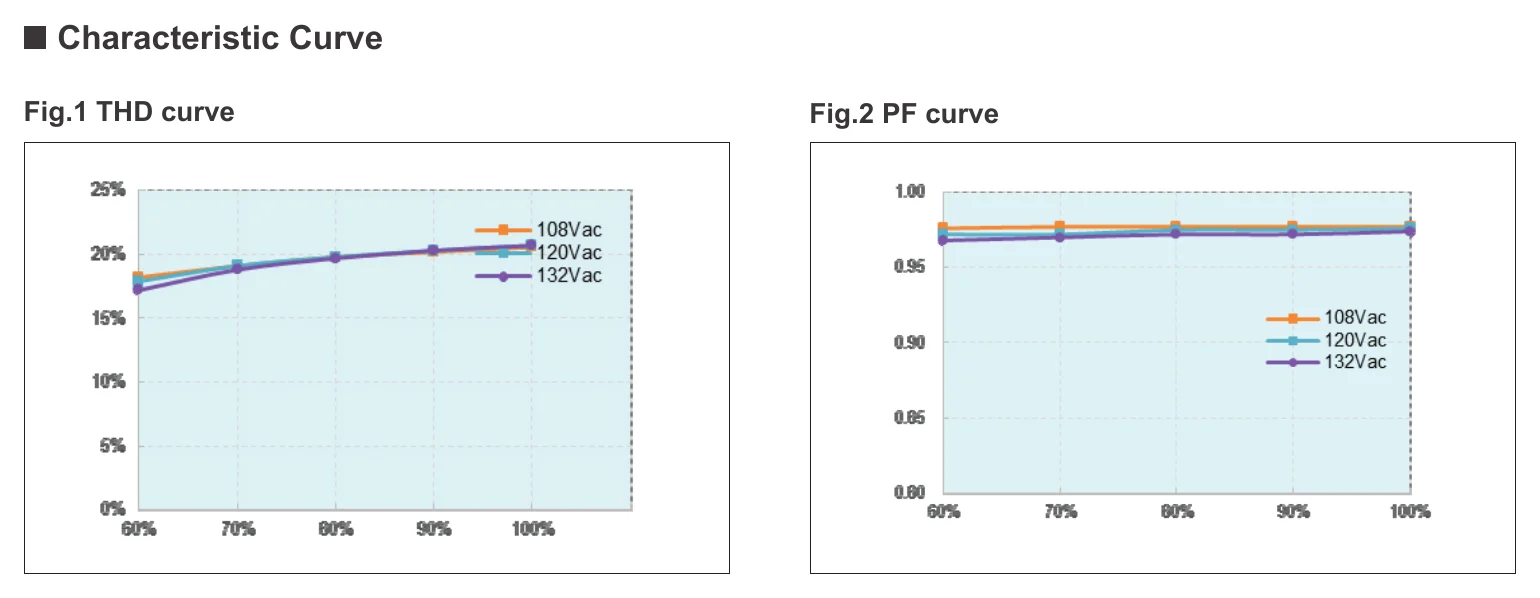

EV-SP-30-24US-TDM Characteristic Curve
Characteristic Curve

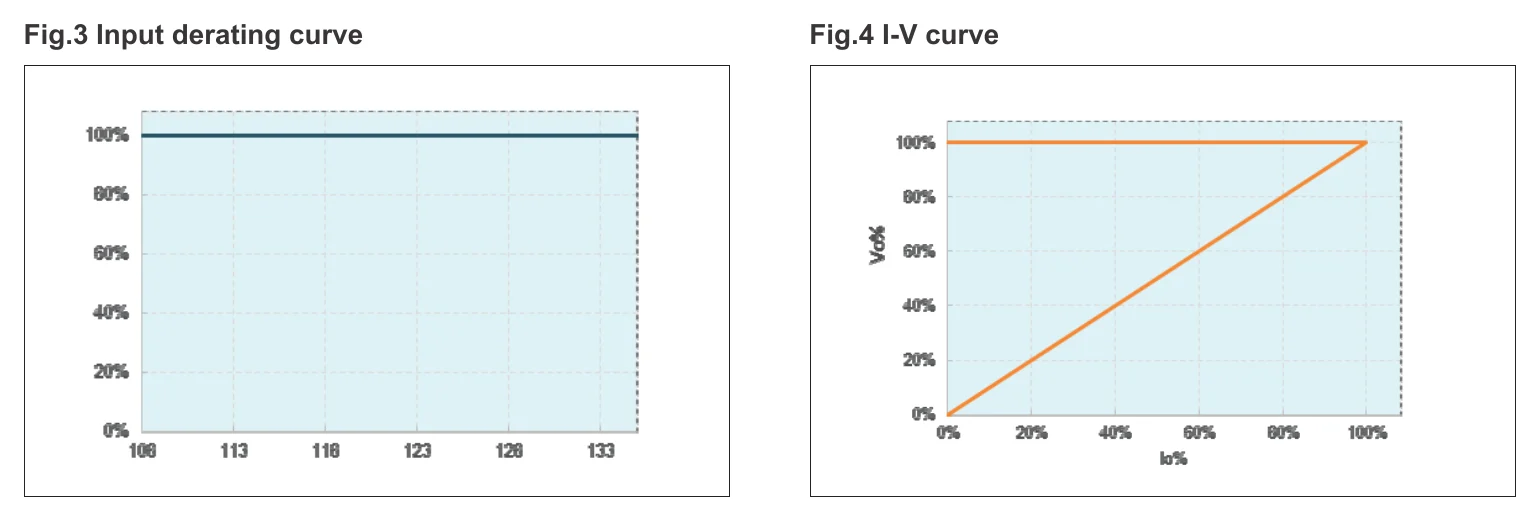

EV-SP-30-24US-TDM Fig.3 Input derating curve
Fig.3 Input derating curve

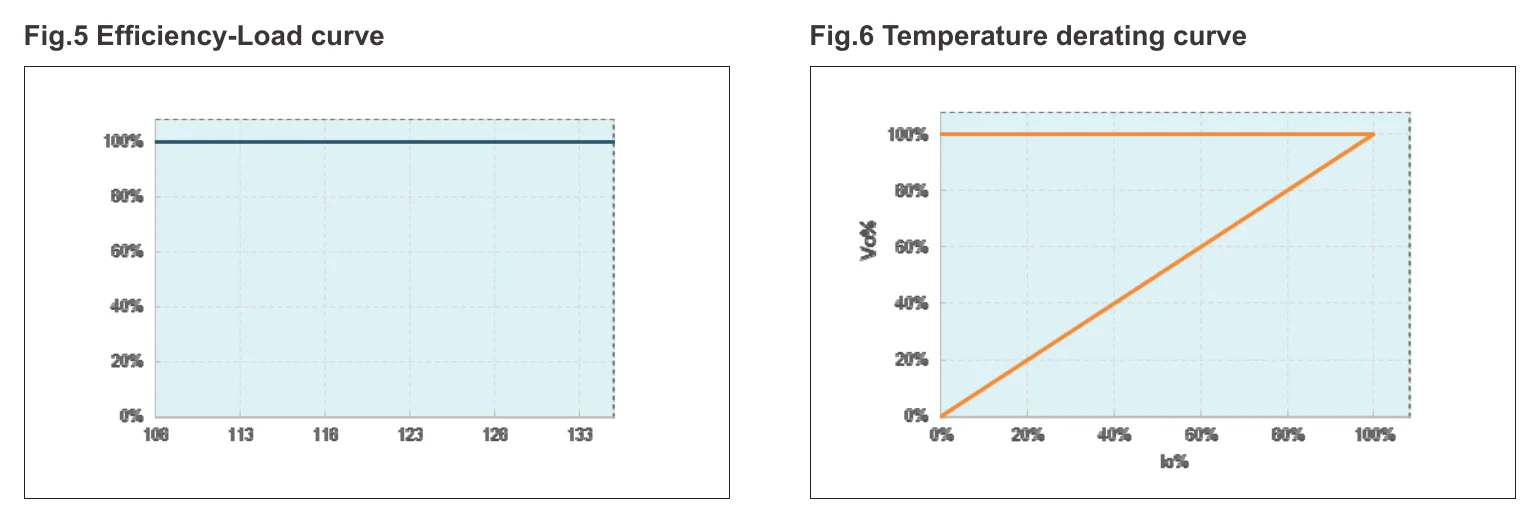

EV-SP-30-24US-TDM Fig.5 Efficiency-Load curve
Fig.5 Efficiency-Load curve

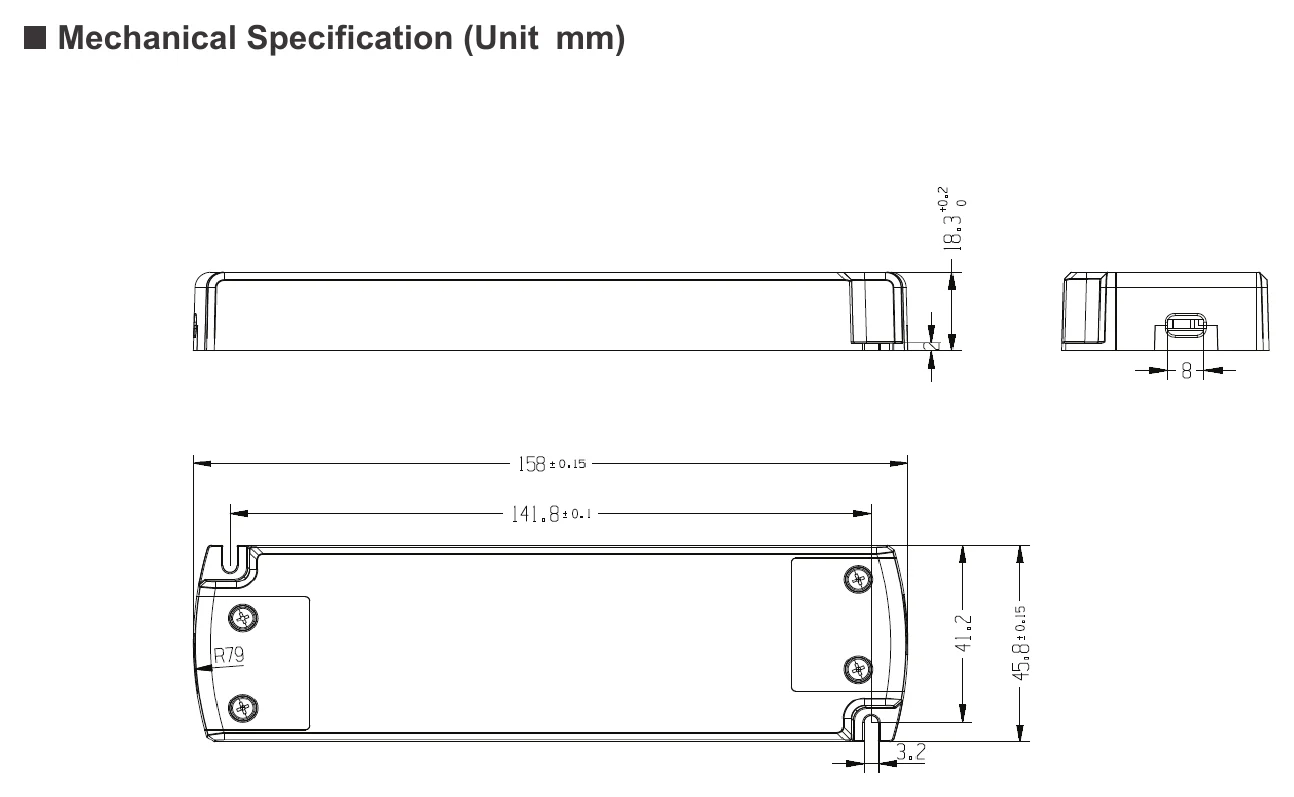

EV-SP-30-24US-TDM Mechanical Specification (Unit mm)
Mechanical Specification (Unit mm)
EV-SP-30-24US-TDM Mechanical Specification (Unit mm) (2)
Mechanical Specification (Unit mm) (2)

Downloads

FAQ

What is this driver used for?

It is an indoor constant voltage LED driver designed for LED lighting applications. It is suitable for dry environments and indoor installations where LED lamps are used.

What are the electrical ratings?

The driver provides a 24VDC output with a rated current of 1.25A and a maximum power of 30W. It operates on a 120Vac input at 60Hz with an efficiency of at least 83%.

How does the dimming work?

It supports leading-edge and trailing-edge triac dimmers. The dimming range is 20% to 90% of the rated output.

How is it installed and cooled?

The unit uses natural cooling and has an IP20 rating, so it must be installed in a dry, indoor location. It features a plastic case with internal glue potting and measures 158mm x 45.8mm x 18.3mm.

What safety protections are included?

The driver includes open circuit, short circuit, overload, and over voltage protections. Short circuit and overload conditions trigger a hiccup mode with auto-recovery once the fault is removed.

Is it certified for safety?

Yes, it complies with UL8750 and UL1310 standards and is UL/CUL listed. It also meets FCC Part 15B for EMI/EMS.

What is the warranty period?

The product comes with a 5-year warranty.
