Envo

ENVO EV-SNPV-40-24 LED Driver 40W 24V 1.67A

90~264VAC universal inputultra thin 0.67"(17mm)PF 0.9
SKU EV-SNPV-40-24
$18.51 USD
Shipping calculated at checkout.

Select model — 2 in this family

EV-SNPV-40-24
In stock
|

Overview

High cost performance, complies with Class 2 standard of electric shock protection. Features wide input voltage, flat and slim design, ideal for furniture or cabinet lighting applications in Europe and US markets. SELV. Provides open circuit, short circuit, overload, and overtemperature protection. Compliance with ERP directive. 5 years warranty.

Specifications

EV-SNPV-40-24Specifications from the official datasheetDownload datasheet PDF

Input

Input voltage
90-264Vac
Input frequency
50Hz/60Hz
Input current
0.55A
Input power
<47.5W
Efficiency
≥ 86%
StandbyAverage
<0.5W
Inrush currentPeak
<50A
PF
≥0.9

Output

Startup time
1.0S
Output voltage and precision
24V±5%
Output current range40W
0-1.67A
Output voltage waveVp-p
240mV
Output overload
Yes

Environment

Relative humidity
45%-85%
IP grade
IP20

Others

Lifetime
30,000hr
EMI
IEC55015 FCC PART15 Class B
Safety
IEC61347-1 IEC61347-2-13, UL8750

Certifications & ratings

Marked features
SELV, Class II
Certification marks
CE, UKCA, UL, cULus, cRUus

Technical drawings

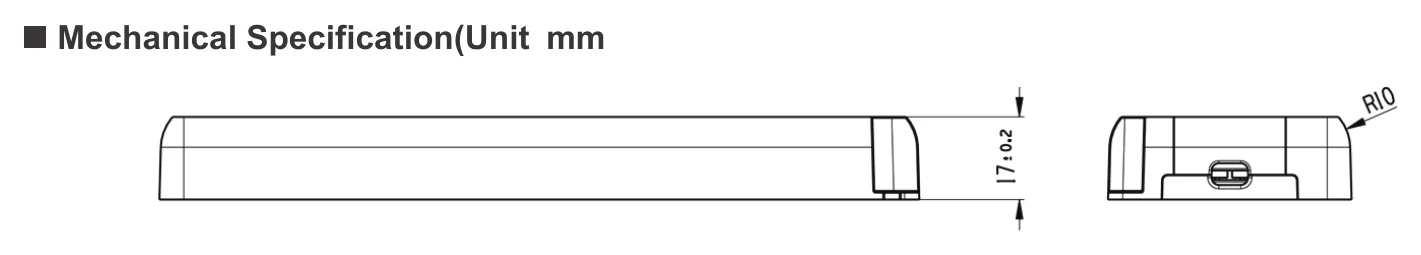

EV-SNPV-40-24 Mechanical Specification (Unit mm)
Mechanical Specification (Unit mm)

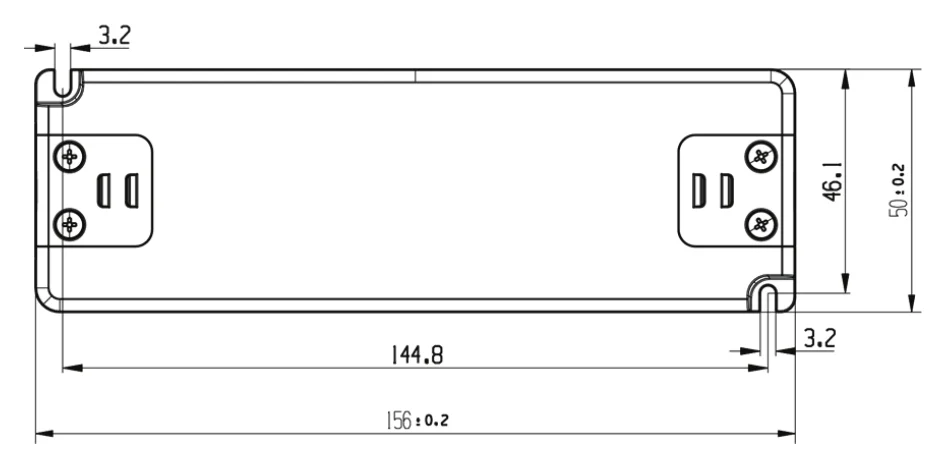

EV-SNPV-40-24 Mechanical Specification (Unit mm) (2)
Mechanical Specification (Unit mm) (2)

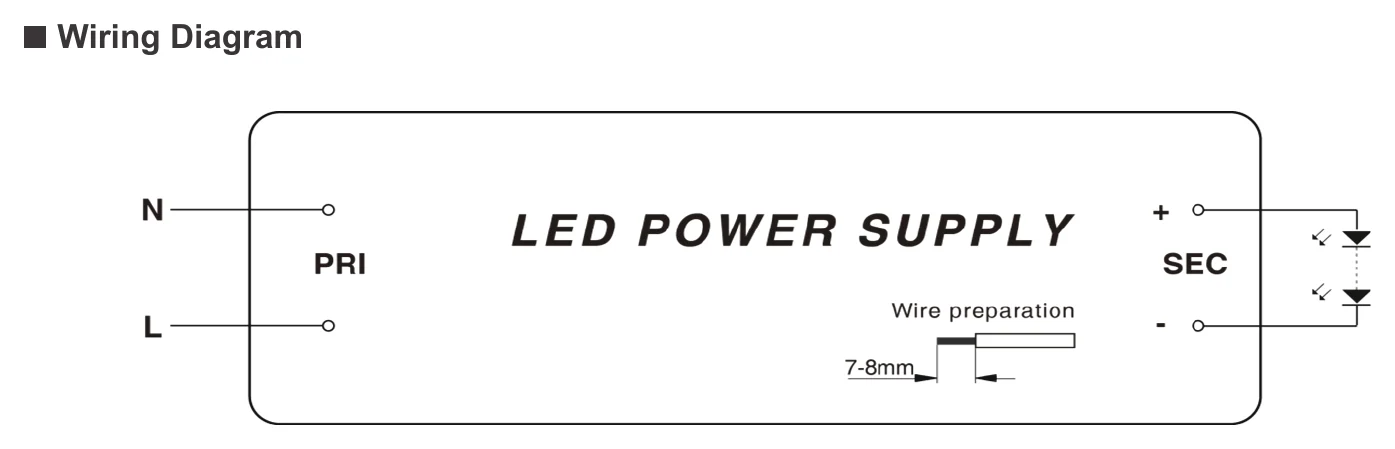

EV-SNPV-40-24 Wiring Diagram
Wiring Diagram

Downloads

FAQ

What is this LED driver used for?

It is designed for furniture or cabinet lighting applications in Europe and US markets, featuring a flat and slim design.

What are the output voltage and current ratings?

The output is 24V with a current range of 0-1.67A, providing up to 40W of power.

What is the input voltage range?

It accepts a wide input voltage range of 90-264Vac at 50Hz/60Hz.

What protections does the driver include?

It provides open circuit, short circuit, overload, overtemperature, and overvoltage protection with auto-recovery.

How is the driver mounted?

It has an independent mounting style with a plastic case and an IP20 rating, suitable for indoor use.

What is the warranty period?

The product comes with a 5-year warranty.
