ENVO EV-SE-75-24US LED Driver 75W 24V 3.125A

Name: ENVO EV-SE-75-24US LED Driver 75W 24V 3.125A
Brand: Envo
SKU: EV-SE-75-24US
Price: 24.51 USD
Availability: InStock

90~132VAC US inputultra thin 0.677"(17.2mm)

SKU EV-SE-75-24US

$24.51 USD

Shipping calculated at checkout.

Select model — 5 in this family

EV-SE-75-24US

EV-SE-15-24US 24V 15W In stock$7.43 USD

EV-SE-20-24US 24V 20W In stock$7.89 USD

EV-SE-30-24US 24V 30W In stock$14.13 USD

EV-SE-50-24US 24V 50W In stock$19.83 USD

EV-SE-75-24US 24V 75W In stock$24.51 USD

Product variants

In stock

Overview

EV-SE-75-12US/24US is a US standard indoor ultra-thin constant voltage LED driver. Its input voltage range is 90-132Vac, with a maximum conversion efficiency of 88%, working at -20°C to +45°C ambient temperature range, low standby power consumption, all-round protection functions, not only greatly improves the reliability of the products, but also ensures the product life cycle. This series is designed for LED lighting, and applied to indoor bathroom mirror lamps and other lighting lamps.

Features

US standard input voltage 90-132 Vac
IP20
Protections: Short circuit / Overload / Overvoltage
Compliance with worldwide safety regulations for lighting
5 years warranty

Specifications

EV-SE-75-24USSpecifications from the official datasheetDownload datasheet PDF

Input

Rated input voltage: 100 Vac - 120Vac
Input voltage: 90Vac - 132Vac
Input frequency: 47Hz - 63Hz
Max. Input current: 0.98A (90Vac, Full Load)
Input inrush current: 60A (120Vac/60Hz, Cold Start)
Power factor: 0.98 - 0.99 (120Vac, Full Load)
Total harmonic input: 5.5% - 6.5% (120Vac, Full Load)
Leakage current: 0.7mA (120Vac/60Hz, Full Load)
Stand-by power consumption: 0.30W - 0.5W (120Vac/60Hz, No Load)

Output

Rated output voltage: 24VDC
Rated output current: 0-3.125A
Rated output power: 75W
Rated output efficiency: 88%
Output voltage ripple (PK-PK): 3%
Line regulation: ±1%
Load regulation: ±2%

Protection

Over load: 1.4 times of rated load
Short circuit: Short circuit power≤2.0W
Over voltage: 1.5 times of rated output voltage
Over temperature: 110°C

Environment Requirement

Working temp.: -20°C to +45°C
Storage temp.: -40°C to +85°C
Working humidity: 10%RH - 90%RH
Storage humidity: 5%RH - 95%RH
Cooling mode: Natural cooling

Safety&EMC Standard

UL/CUL: UL8750
EMC: FCC PART 15

Others

Lifetime: 55,000 hours
MTBF: 200,000 hours
TC: 85°C
Warranty: 5 years
Weight: 240g
Dimensions: 177mm*56mm*17.2mm

Certifications & ratings

Certification marks: UL, CUL, FCC

Test conditions and notes2

Remark: All parameters NOT specially mentioned are measured at 230VAC input, full load and 25°C of ambient temperature.
Remark: All parameters NOT specially mentioned are typical values measured at 25°C of ambient temperature.

Technical drawings

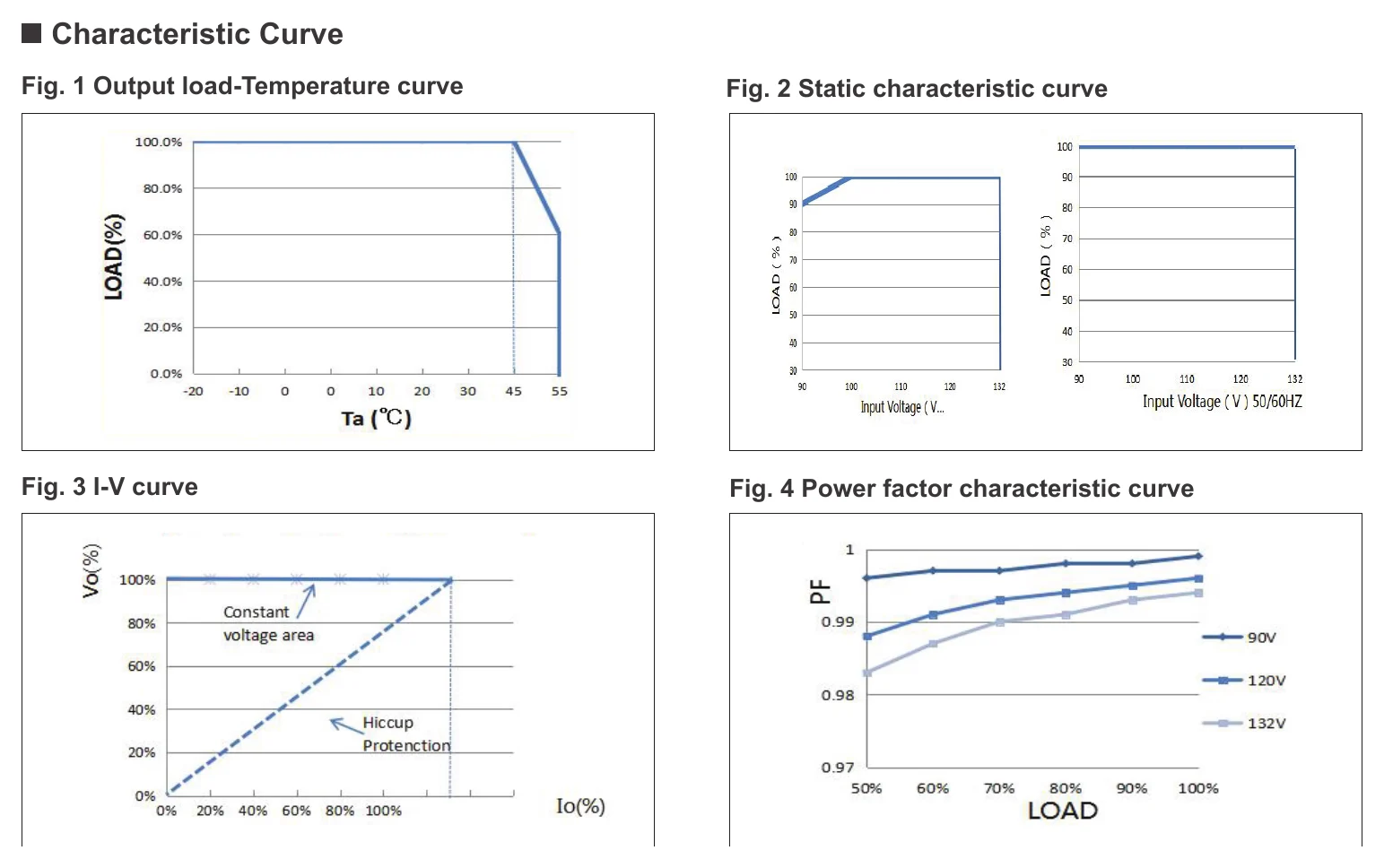

EV-SE-75-24US Characteristic Curve — Characteristic Curve

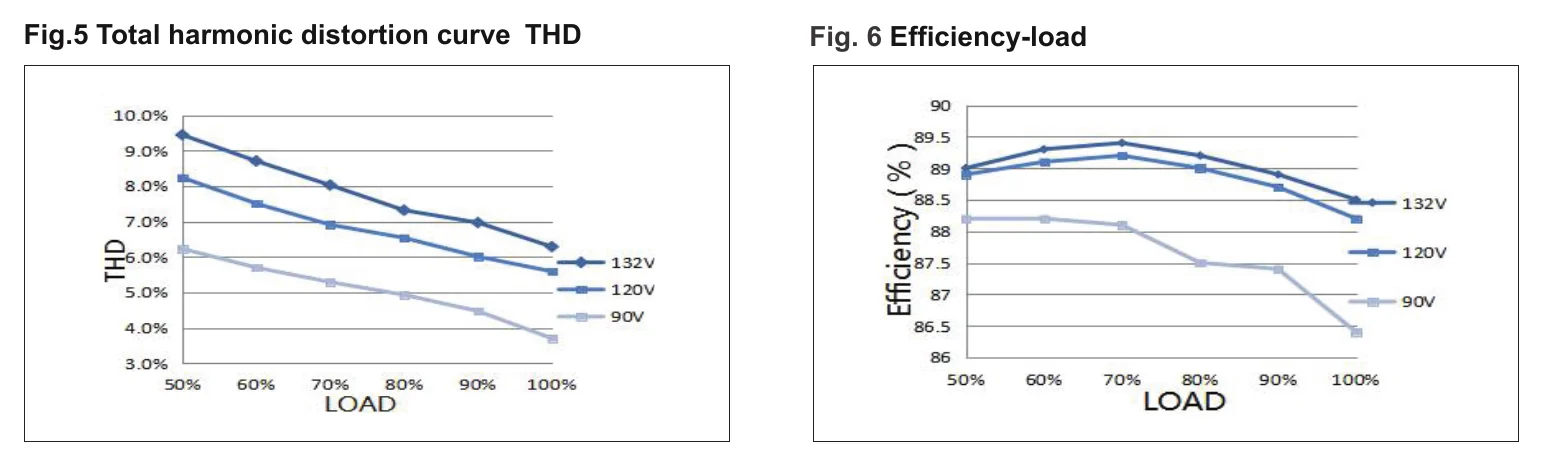

EV-SE-75-24US Fig.5 Total harmonic distortion curve THD — Fig.5 Total harmonic distortion curve THD

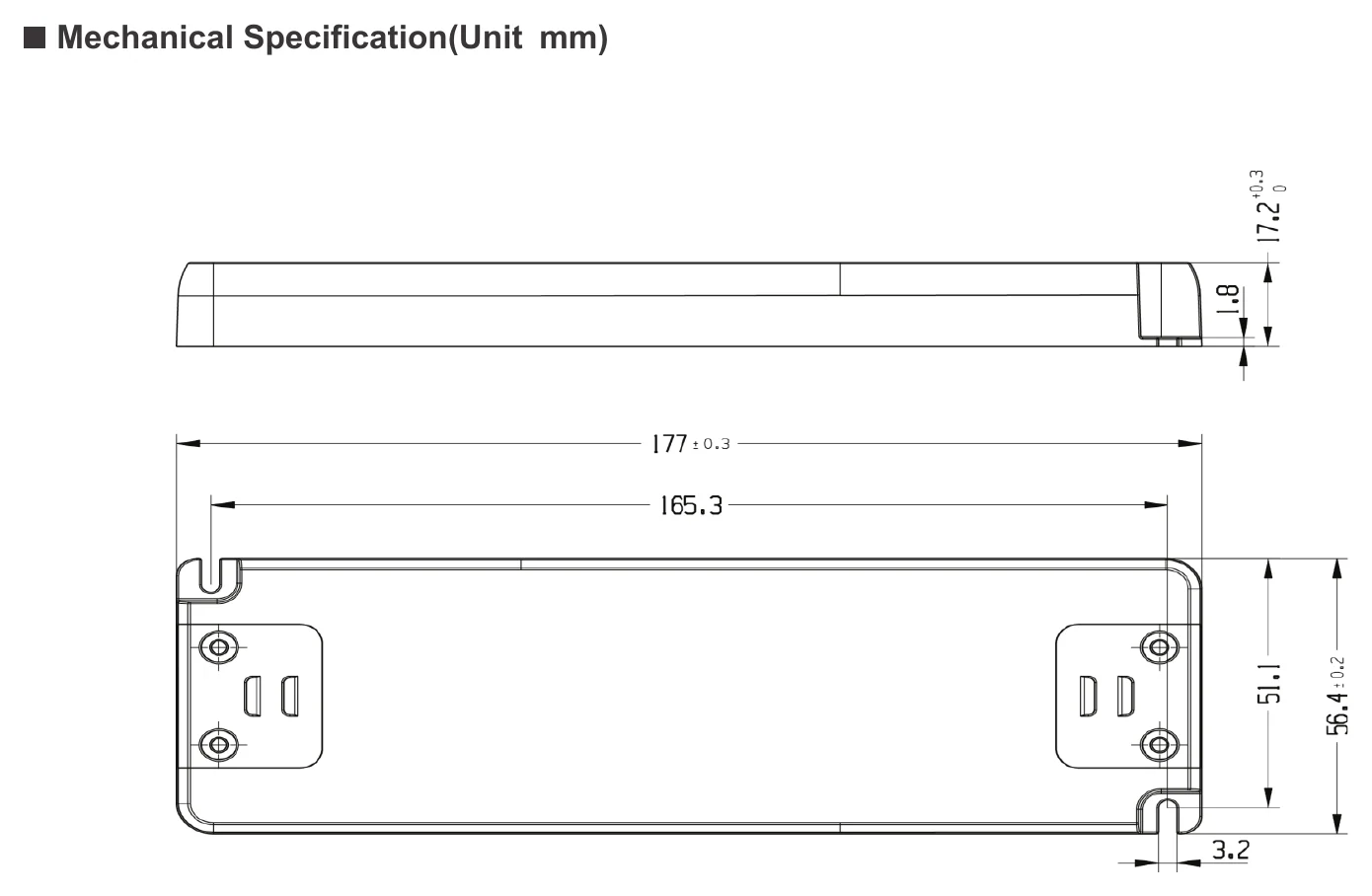

EV-SE-75-24US Mechanical Specification (Unit mm) — Mechanical Specification (Unit mm)

Downloads

Datasheet1

EV-SE-75-24US datasheetEV_SE_75_12_24US.pdf PDF Download

FAQ

What is this LED driver used for?

It is an ultra-thin constant voltage LED driver designed for indoor lighting applications, such as bathroom mirror lamps and other indoor fixtures.

What are the output ratings?

It provides a 24VDC output with a rated current of 0-3.125A and a maximum output power of 75W. The typical efficiency is 88%.

What is the input voltage range?

It accepts a US standard input voltage range of 90-132Vac at 47-63Hz.

Where can this driver be installed?

It has an IP20 rating, making it suitable for indoor use only. It operates in ambient temperatures from -20°C to +45°C and uses natural cooling.

What protections are included?

The driver includes short circuit, overload, overvoltage, and over-temperature protections. Short circuit and overload protections feature auto-recovery.

Is it certified for safety?

Yes, it complies with UL8750 safety standards and FCC Part 15 EMC standards.

What is the warranty period?

The product comes with a 5-year warranty.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
ENVO EV-SE-50-24US LED Driver 50W 24V 2.08A	50W	24V	2.08A	IP20	View
ENVO EV-SE-30-24US LED Driver 30W 24V 1.25A	30W	24V	1.25A	IP20	View
ENVO EV-SE-20-24US LED Driver 20W 24V 833mA	20W	24V	0.833A	IP20	View
ENVO EV-SE-15-24US LED Driver 15W 24V 625mA	15W	24V	0.625A	IP20	View
