Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Envo

ENVO EV-SE-50-24US LED Driver 50W 24V 2.08A

90~132VAC US inputultra thin 0.67"(17mm)
SKU EV-SE-50-24US
$19.83 USD
Shipping calculated at checkout.

Select model — 5 in this family

EV-SE-50-24US
In stock
|

Overview

EV-SE-50-24US is the model of this series: typical efficiency 88%.

EV-SE-50-12US/24US is a US standard indoor ultra-thin constant voltage LED power supply. Its input voltage range is 90-132Vac, with high efficiency up to 88%, working in the temperature range of -20°C to +45°C ambient temperature range. It has ultra-high power factor, low THD, low standby power consumption, full protection function, which not only greatly improves the reliability of the product, but also ensures the life cycle of the product. This series is designed for LED lighting such as indoor bathroom mirror lamps and other lighting.

Features

  • US standard input voltage 90-132 Vac
  • IP20
  • Short circuit / overload / over voltage protection
  • Compliance with worldwide safety regulations for lighting
  • 5 years warranty

Specifications

EV-SE-50-24USSpecifications from the official datasheetDownload datasheet PDF

Input

Rated input voltage
120Vac
Input voltage
90Vac - 132Vac
Input frequency
47Hz - 63Hz
Max. Input current
0.66A (90Vac, Full Load)
Input inrush current
60A (120Vac/60Hz, Cold Start)
Power factor
0.99 (120Vac, Full Load)
Total harmonic input
7% (120Vac, Full Load)
Leakage current
0.7mA (120Vac/60Hz, Full Load)
Stand-by power consumption
0.5W (120Vac/60Hz, No Load)

Output

Rated output voltage
24VDC
Rated output current
0-2.08A
Rated output power
50W
Rated output efficiency
88%
Output voltage ripple (PK-PK)
±2%
Line regulation
±1%
Load regulation
±2%
Max.output Tolerance
±5%
Rated harmonic distortion
6.5%
Power factor (Typ.)
0.99

Protection

Over load
1.3 times of rated load, Auto-recovery after overload removed
Short circuit
Short circuit power≤1.3W, Hiccup mode, auto-recovery after short circuit removed
Over voltage
1.5 times of rated output voltage, Turn off the input voltage, can be restored after restart
Over temperature
110°C, Turn off the input voltage, can be restored after restart

Environment Requirement

Working temp.
-20°C to +45°C
Storage temp.
-40°C to +85°C
Working humidity
10%RH - 90%RH
Storage humidity
5%RH - 95%RH
IP grade
IP20
Cooling mode
Natural cooling

Safety&EMC Standard

UL/CUL
UL8750
EMC
FCC PART 15

Others

Lifetime
55,000 hours (120Vac Full load TC:75°C)
MTBF
200,000hours (120Vac Full load Ta:25°C (MIL-HDBK-217F))
TC
85°C
Warranty
5 years (TC 75°C)
Weight
145g
Dimensions
156*50*17mm LxWxH

Certifications & ratings

Certification marks
UL, CUL, FCC
Test conditions and notes2
  1. Remark: All parameters NOT specially mentioned are measured at 120VAC input, full load and 25°C of ambient temperature.
  2. Remark: All parameters NOT specially mentioned are typical values measured at 25°C of ambient temperature.

Technical drawings

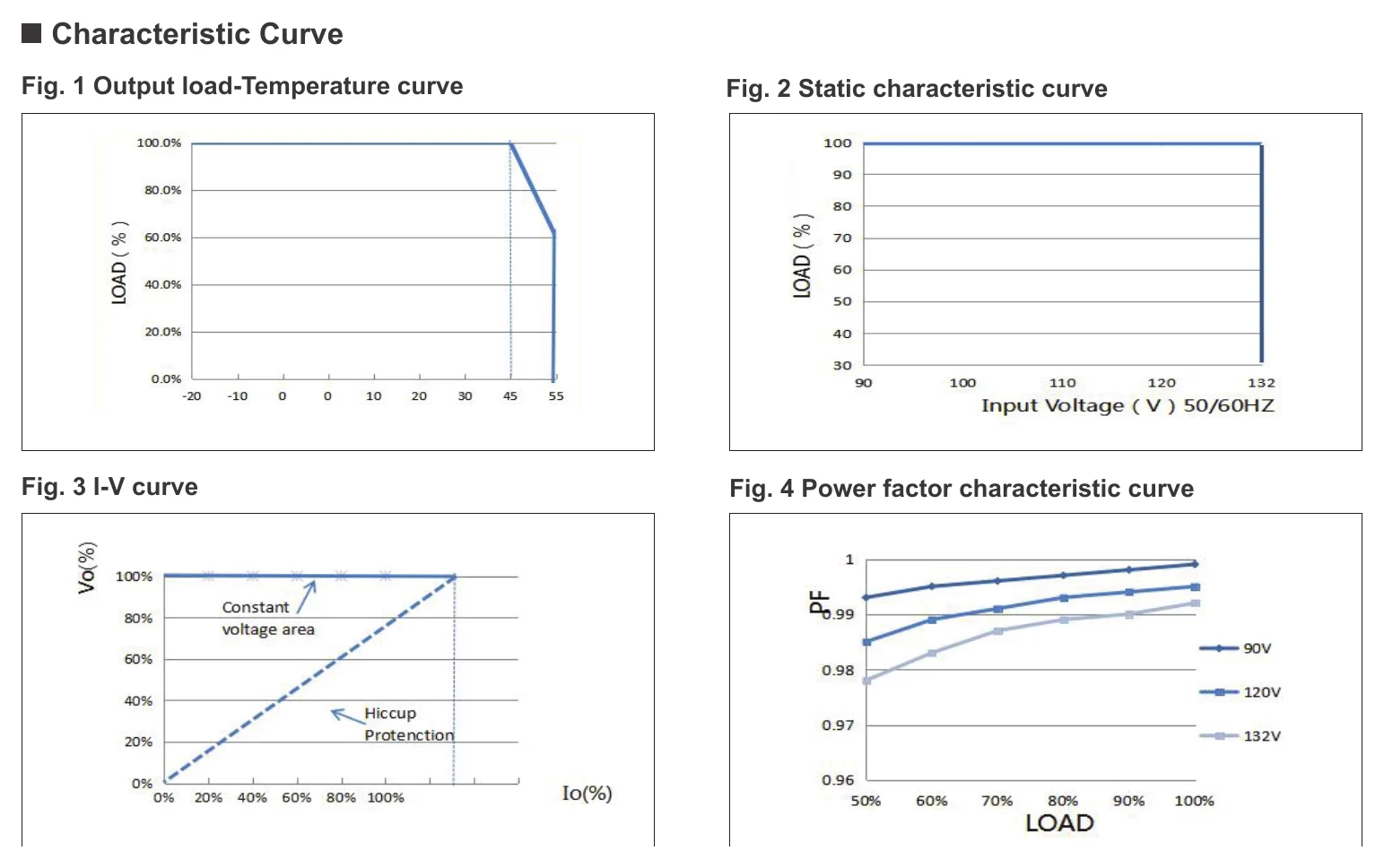

EV-SE-50-24US Characteristic Curve
Characteristic Curve

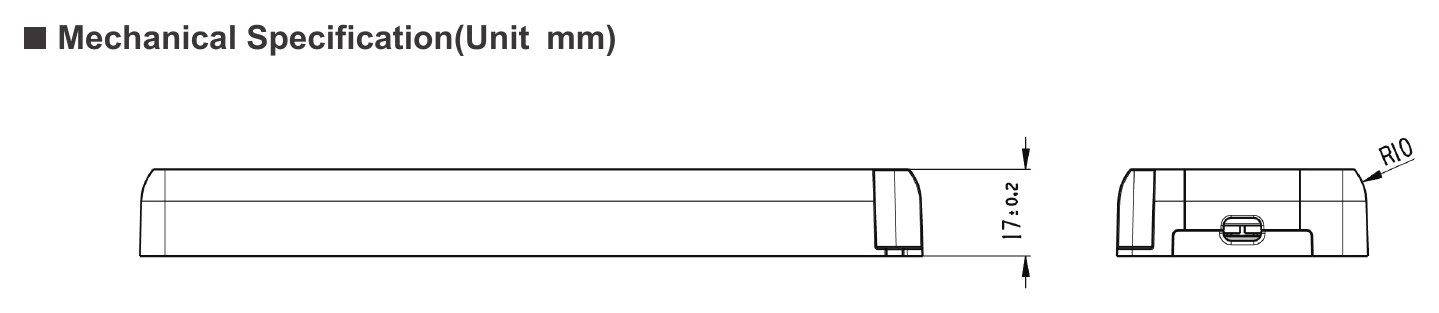

EV-SE-50-24US Mechanical Specification (Unit mm)
Mechanical Specification (Unit mm)

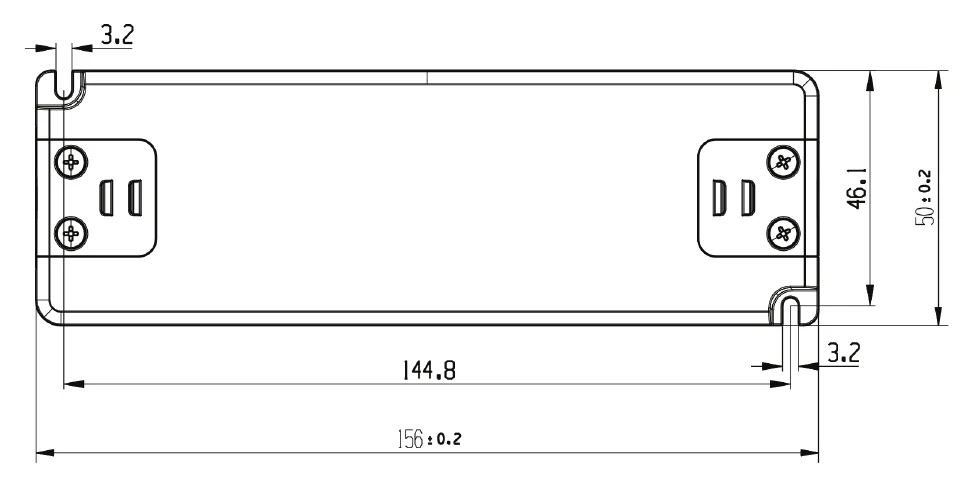

EV-SE-50-24US Mechanical Specification (Unit mm) (2)
Mechanical Specification (Unit mm) (2)

Downloads

FAQ

What is this LED driver used for?

It is an ultra-thin constant voltage LED power supply designed for indoor lighting applications, such as bathroom mirror lamps.

What are the output specifications?

It provides a 24VDC output with a rated current of 0-2.08A and a maximum output power of 50W. The efficiency is typically 88%.

What is the input voltage range?

It operates on a US standard input voltage range of 90-132Vac at 47-63Hz.

Where can this driver be installed?

It has an IP20 rating, making it suitable for indoor use only. It operates in ambient temperatures from -20°C to +45°C and uses natural cooling.

What protections are included?

The driver includes short circuit, overload, over voltage, and over temperature protections. Short circuit and overload protections are auto-recovery, while over voltage and over temperature require a restart.

Is this driver certified?

Yes, it complies with UL8750 safety standards and FCC Part 15 EMC standards.

What is the warranty period?

The product comes with a 5-year warranty.
