Envo

ENVO EV-SE-30-24US LED Driver 30W 24V 1.25A

90~132VAC US inputultra thin 0.67"(17mm)
SKU EV-SE-30-24US
$14.13 USD
Shipping calculated at checkout.

Select model — 5 in this family

EV-SE-30-24US
In stock
|

Overview

EV-SE-30-24US is the model of this series: typical efficiency 86%.

EV-SE-30-12US/24US is a US standard indoor ultra-thin constant voltage LED driver. Its input voltage range is 90-132Vac, with a maximum conversion efficiency of 86%, working at -20°C to +45°C ambient temperature range, low standby power consumption, all-round protection functions, not only greatly improves the reliability of the products, but also ensures the product life cycle. This series is designed for LED lighting, and applied to indoor bathroom mirror lamps and other lighting lamps.

Features

  • US standard input voltage 90-132 Vac
  • IP20
  • Short circuit / overload / over voltage protection
  • Compliance to worldwide safety regulations for lighting
  • 5 years warranty

Specifications

EV-SE-30-24USSpecifications from the official datasheetDownload datasheet PDF

Input

Rated input voltage
100 Vac - 120Vac
Input voltage
90Vac - 132Vac The derating curve is shown in the figure
Input frequency
47-63Hz
Max. Input current
0.43A max (90Vac, Full Load)
Input inrush current
60A 120Vac/60Hz, Cold Start
Power factor
0.99 (120Vac, Full Load)
Total harmonic input
8.5% (120Vac, Full Load)
Leakage current
0.7mA 120Vac/60Hz, Full Load
Stand-by power consumption
0.5W (120Vac/60Hz, No Load)

Output

Rated output voltage
24VDC
Rated output current
0-1.25A
Rated output power
30W
Rated output efficiency
86%
Output voltage ripple (PK-PK)
±2%
Line regulation
±1%
Load regulation
±2%
Max.output Tolerance
±5%
Rated harmonic distortion
8%
Power factor (Typ.)
0.99

Protection

Over load
1.5 times rated load Auto-recovery after overload Removed.
Short circuit
Short circuit power≤0.4W Hiccup mode, auto-recovery after short circuit removed.
Over voltage
1.5 times of rated output voltage Turn off the input voltage, can be restored after restart.

Environment Requirement

Working temp.
-20°C to +45°C
Storage temp.
-40°C to +85°C
Working humidity
10%RH - 90%RH
Storage humidity
5%RH - 95%RH
IP grade
IP20
Cooling mode
Natural cooling

Safety&EMC Standard

UL/CUL
UL8750 √
Safety project
UL8750
EMC
FCC PART 15

Others

Lifetime
55,000 hours (120Vac Full load TC:75°C)
MTBF
200,000hours (120Vac Full load Ta:25°C (MIL-HDBK-217F))
TC
85°C
Warranty
5 years (TC 75°C)
Weight
140g
Dimensions
156*50*17mm LxWxH

Certifications & ratings

Certification marks
UL, CUL, FCC
Test conditions and notes2
  1. Remark: All parameters NOT specially mentioned are measured at 120VAC input, full load and 25°C of ambient temperature.
  2. Remark: All parameters NOT specially mentioned are typical values measured at 25°C of ambient temperature.

Technical drawings

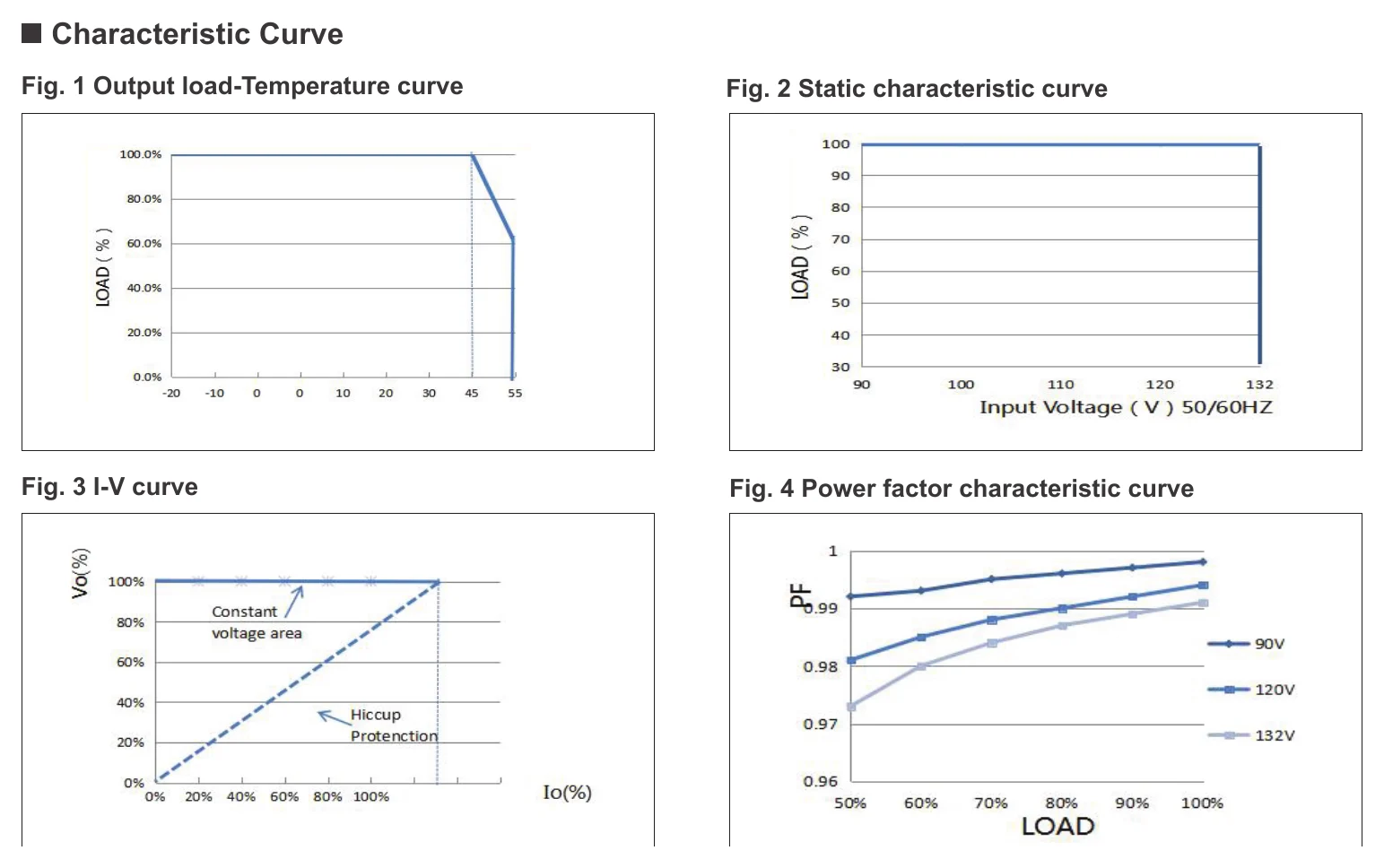

EV-SE-30-24US Characteristic Curve
Characteristic Curve

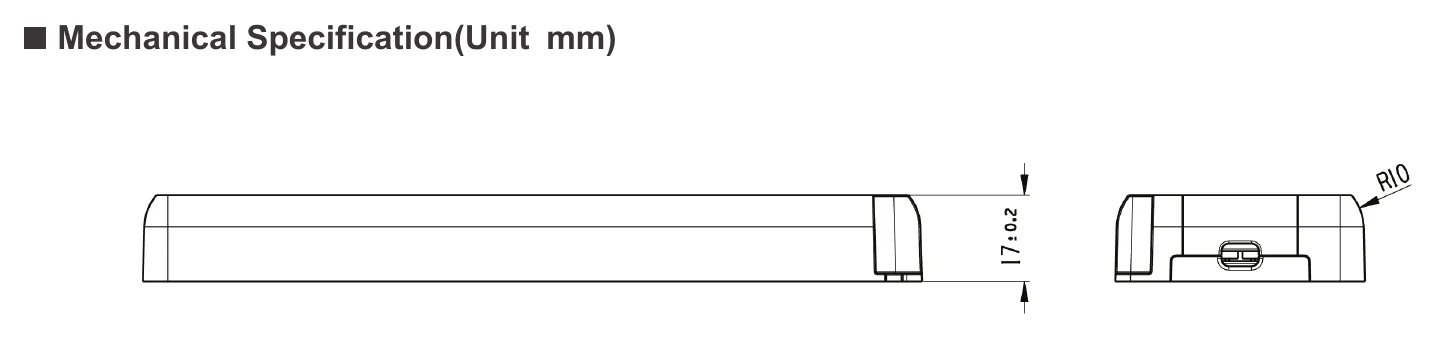

EV-SE-30-24US Mechanical Specification (Unit mm)
Mechanical Specification (Unit mm)

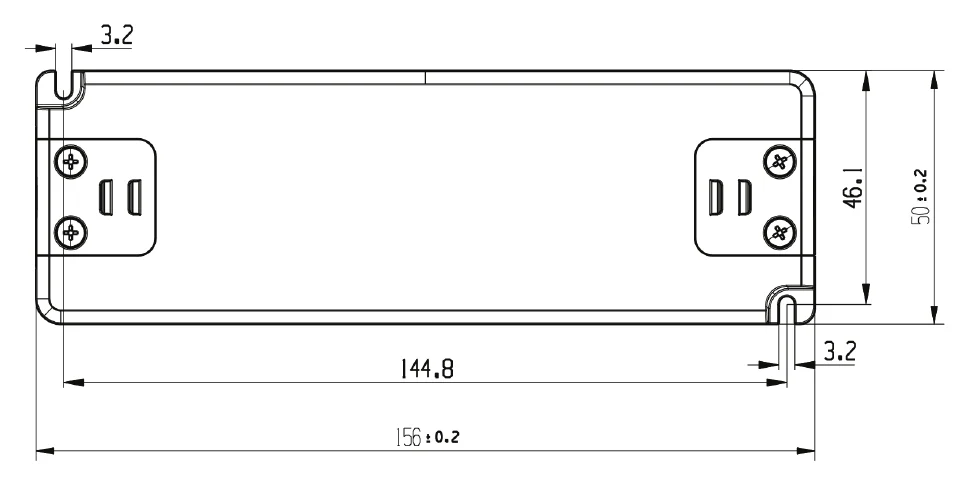

EV-SE-30-24US Mechanical Specification (Unit mm) (2)
Mechanical Specification (Unit mm) (2)

Downloads

FAQ

What is this LED driver used for?

It is an indoor ultra-thin constant voltage LED driver designed for LED lighting, such as bathroom mirror lamps and other indoor fixtures.

What are the output specifications?

It provides a constant 24VDC output with a rated current of 0-1.25A and a maximum power of 30W. The typical efficiency is 86%.

What is the input voltage range?

It accepts a US standard input voltage range of 90-132Vac at 47-63Hz.

Where can this driver be installed?

It has an IP20 rating, making it suitable for indoor use only. It operates in ambient temperatures from -20°C to +45°C.

What protections are included?

The driver includes short circuit, overload, and over voltage protection. It uses natural cooling.

Is this driver certified?

Yes, it complies with UL8750 safety standards and FCC Part 15 EMC standards.

What is the warranty period?

The product comes with a 5-year warranty.
