ENVO EV-SE-20-24US LED Driver 20W 24V 833mA

Name: ENVO EV-SE-20-24US LED Driver 20W 24V 833mA
Brand: Envo
SKU: EV-SE-20-24US
Price: 7.89 USD
Availability: InStock

90~132VAC US inputultra thin 0.63"(16mm)

SKU EV-SE-20-24US

$7.89 USD

Shipping calculated at checkout.

Select model — 5 in this family

EV-SE-20-24US

EV-SE-15-24US 24V 15W In stock$7.43 USD

EV-SE-20-24US 24V 20W In stock$7.89 USD

EV-SE-30-24US 24V 30W In stock$14.13 USD

EV-SE-50-24US 24V 50W In stock$19.83 USD

EV-SE-75-24US 24V 75W In stock$24.51 USD

Product variants

In stock

Overview

EV-SE-20-12US/24US is a US standard indoor ultra-thin constant voltage LED driver. Its input voltage range is 90-132Vac, with a maximum conversion efficiency of 85%, working at -20°C to +45°C ambient temperature range, low standby power consumption, all-round protection functions, not only greatly improves the reliability of the product, but also ensures the product life cycle. This series is designed for LED lighting, and applied to indoor bathroom mirror lamps and other lighting lamps.

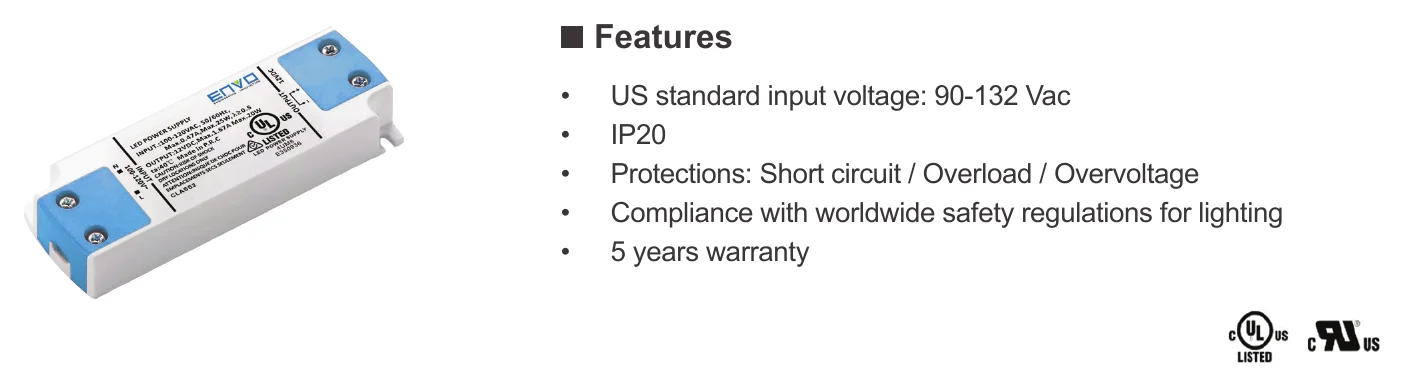

Features

US standard input voltage: 90-132 Vac
IP20
Protections: Short circuit / Overload / Overvoltage
Compliance with worldwide safety regulations for lighting
5 years warranty

Specifications

EV-SE-20-24USSpecifications from the official datasheetDownload datasheet PDF

Input

Rated input voltage: 100-120Vac
Input voltage: 90Vac - 132Vac
Input frequency: 47-63Hz
Max. Input current: 0.47A max (90Vac, Full Load)
Input inrush current: 60A (120Vac/60Hz, Cold Start)
Power factor: 0.55 max (120Vac, Full Load)
Leakage current: 0.7mA (120Vac/60Hz, Full Load)
Stand-by power consumption: 0.5W max (120Vac/60Hz, No Load)

Output

Rated output voltage: 24VDC
Rated output current: 0-0.833A
Rated output power: 20W
Rated output efficiency: 85%
Output voltage ripple (PK-PK): 4%
Line regulation: ±1%
Load regulation: ±2%
Output voltage tolerance: ±5%

Protection

Over load: 1.4 times rated load
Short circuit: Short circuit power≤0.4W
Over voltage: 1.5 times of rated output voltage

Environment Requirement

Working temp.: -20°C to +45°C
Storage temp.: -40°C to +85°C
Working humidity: 10%RH - 90%RH
Storage humidity: 5%RH - 95%RH
Cooling mode: Natural cooling

Safety&EMC Standard

UL/CUL: UL8750 √
Safety project: UL8750
EMC: FCC PART 15

Others

Lifetime: 55,000 hours
MTBF: 200,000hours
TC: 85°C
Warranty: 5 years
Weight: 65g
Dimensions: 103*35.5*16mm

Cables

AC input cable: Terminal SPT-2 18AWG
DC output cable: Terminal SPT-2 18AWG

Certifications & ratings

Certification marks: UL, CUL, FCC

Test conditions and notes2

Remark: All parameters NOT specially mentioned are measured at 120VAC input, full load and 25°C of ambient temperature.
Remark: All parameters NOT specially mentioned are typical values measured at 25°C of ambient temperature.

Technical drawings

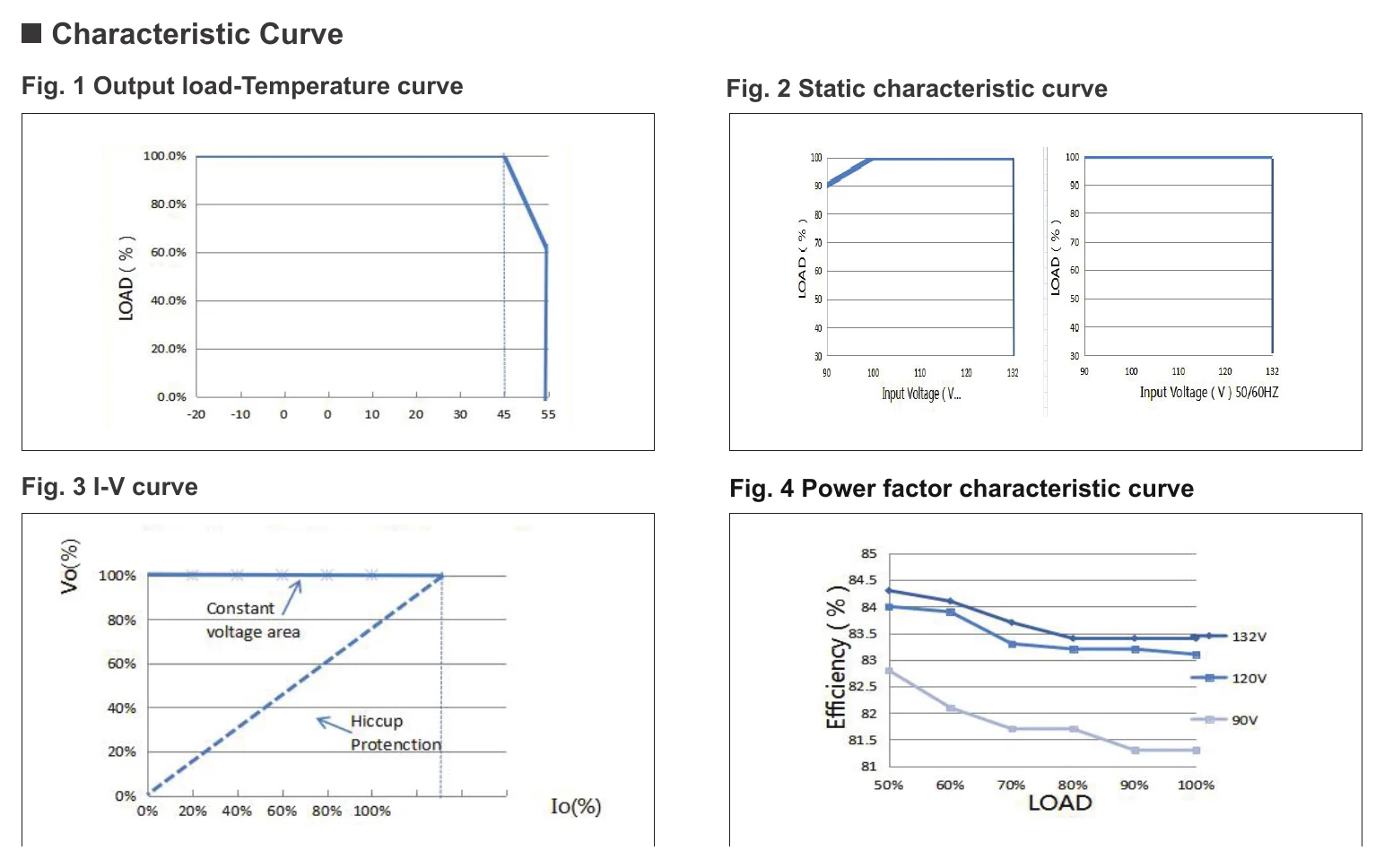

EV-SE-20-24US Characteristic Curve — Characteristic Curve

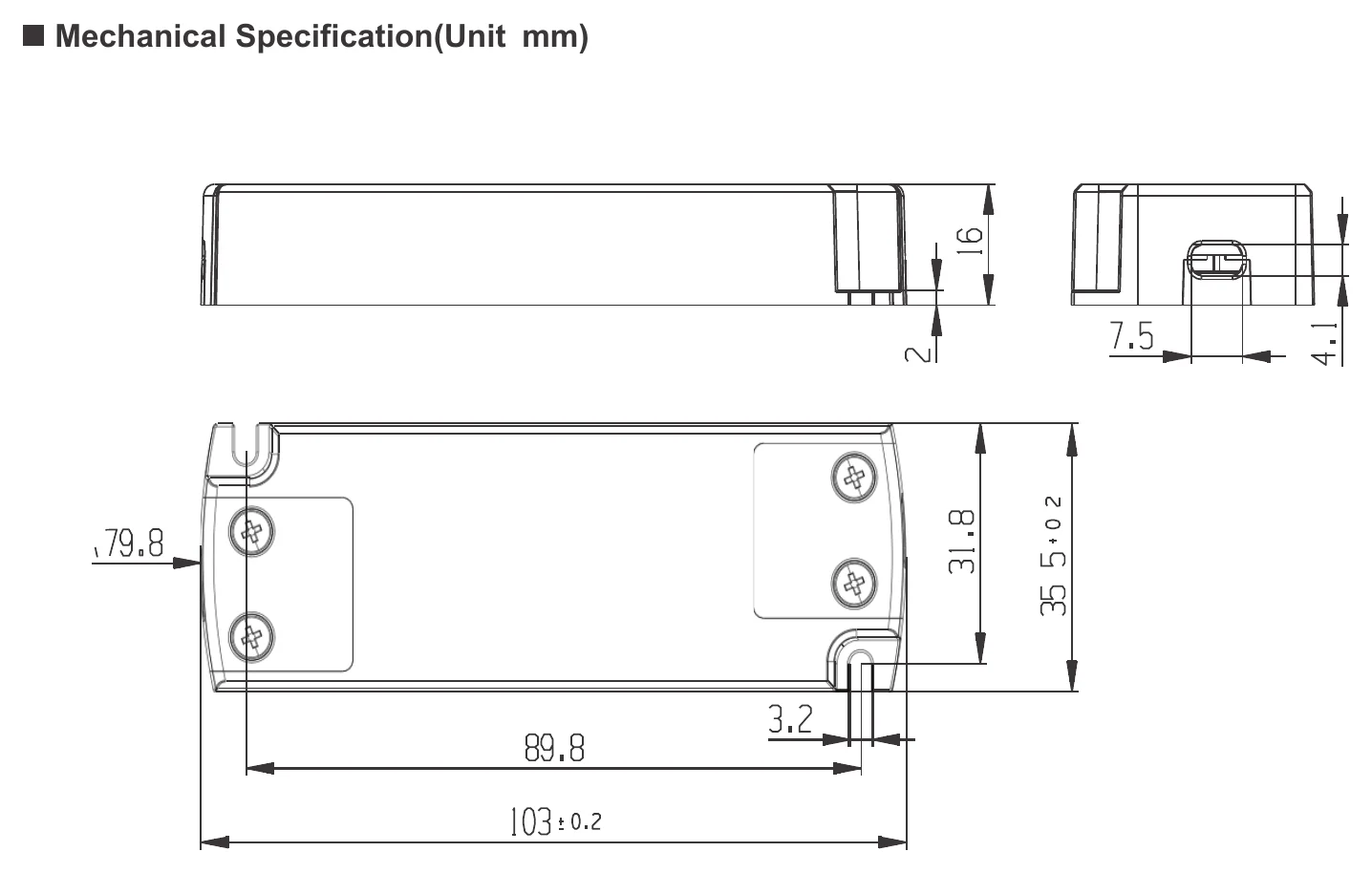

EV-SE-20-24US Mechanical Specification (Unit mm) — Mechanical Specification (Unit mm)

Downloads

Datasheet1

EV-SE-20-24US datasheetEV_SE_20_12_24US.pdf PDF Download

FAQ

What is this LED driver used for?

It is an ultra-thin constant voltage LED driver designed for indoor lighting applications, such as bathroom mirror lamps and other indoor fixtures.

What are the output specifications?

It provides a 24VDC output with a rated current of 0-0.833A and a maximum output power of 20W. The typical efficiency is 85%.

What is the input voltage range?

The unit accepts a US standard input voltage range of 90Vac to 132Vac at 47Hz to 63Hz.

What is the IP rating and operating temperature?

The driver has an IP20 rating, making it suitable for indoor use only. It operates in an ambient temperature range of -20°C to +45°C.

What protections are included?

It features automatic recovery for short circuit and overload conditions, and overvoltage protection that requires a restart after triggering.

Is this driver certified?

Yes, it complies with UL8750 safety standards and FCC Part 15 EMC standards.

What is the warranty period?

The product comes with a 5-year warranty.
