Envo

ENVO EV-SE-15-24US LED Driver 15W 24V 625mA

90~132VAC US inputultra thin 0.63"(16mm)
SKU EV-SE-15-24US
$7.43 USD
Shipping calculated at checkout.

Select model — 5 in this family

EV-SE-15-24US
In stock
|

Overview

EV-SE-15-12US/ 24US is a US standard indoor ultra-thin constant voltage LED driver. Its input voltage range is 90-132Vac, with a maximum conversion efficiency of 86%, working at -20°C to +45°C ambient temperature range, low standby power consumption, all-round protection functions, not only greatly improves the reliability of the product, but also ensures the product life cycle. This series is designed for LED lighting, and applied to indoor bathroom mirror lamps and other lighting lamps.

Features

  • US standard input voltage 90-132 Vac
  • IP20
  • Short circuit / overload / over voltage protection
  • Compliance to worldwide safety regulations for lighting
  • 5 years warranty

Specifications

EV-SE-15-24USSpecifications from the official datasheetDownload datasheet PDF

Input

Rated input voltage
100 Vac - 120Vac
Input voltage
90Vac - 132Vac
Input frequency
47Hz - 63Hz
Max. Input current
0.37A max (90Vac, Full Load)
Input inrush current
60A (120Vac/60Hz, Cold Start)
Power factor
0.55 (120Vac, Full Load)
Leakage current
0.7mA (120Vac/60Hz, Full Load)
Stand-by power consumption
0.5W (120Vac/60Hz, No Load)

Output

Rated output voltage
24VDC
Rated output current
0-0.625A
Rated output power
15W
Rated output efficiency
86%
Output voltage ripple (PK-PK)
±2%
Line regulation
±1%
Load regulation
±2%
Output voltage tolerance
±5%

Protection

Over load
1.5 times rated load
Short circuit
Short circuit power≤0.4W
Over voltage
1.5 times of rated output voltage

Environment Requirement

Working temp.
-20°C to +45°C
Storage temp.
-40°C to +85°C
Working humidity
10%RH - 90%RH
Storage humidity
5%RH - 95%RH
IP grade
IP20
Cooling mode
Natural cooling

Safety&EMC Standard

UL/CUL
UL8750
EMC
FCC PART 15

Others

Lifetime
55,000 hours (120Vac Full load TC:75°C)
MTBF
200,000hours (120Vac Full load Ta:25°C (MIL-HDBK-217F))
TC
80°C
Warranty
5 years (TC 75°C)
Weight
52g
Dimensions
103*35.5*16mm L x W x H

Cables

AC input cable
Terminal SPT-2 18AWG
DC output cable
Terminal SPT-2 18AWG

Certifications & ratings

Certification marks
UL, CUL, FCC
Test conditions and notes2
  1. Remark: All parameters NOT specially mentioned are measured at 120VAC input, full load and 25°C of ambient temperature.
  2. Remark: All parameters NOT specially mentioned are typical values measured at 25°C of ambient temperature.

Technical drawings

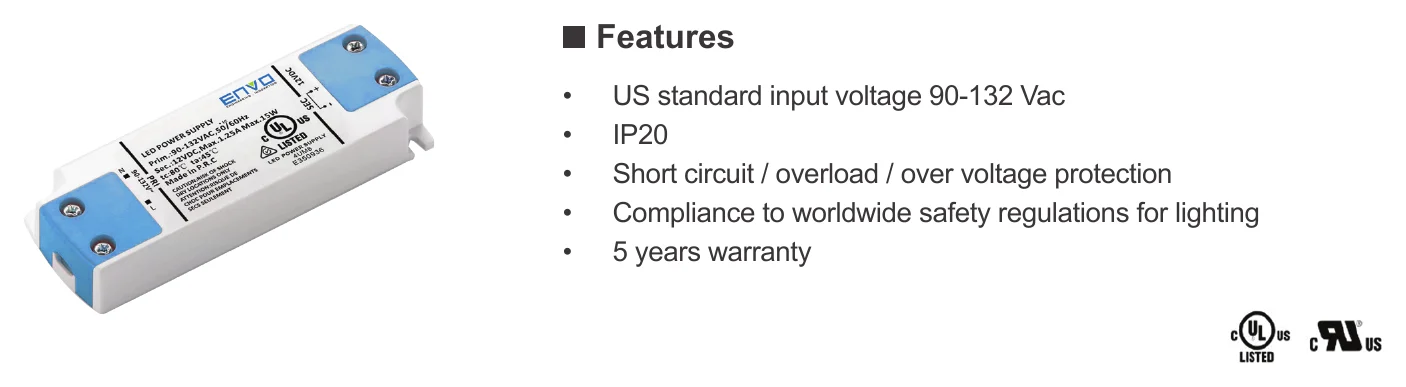

EV-SE-15-24US Features
Features

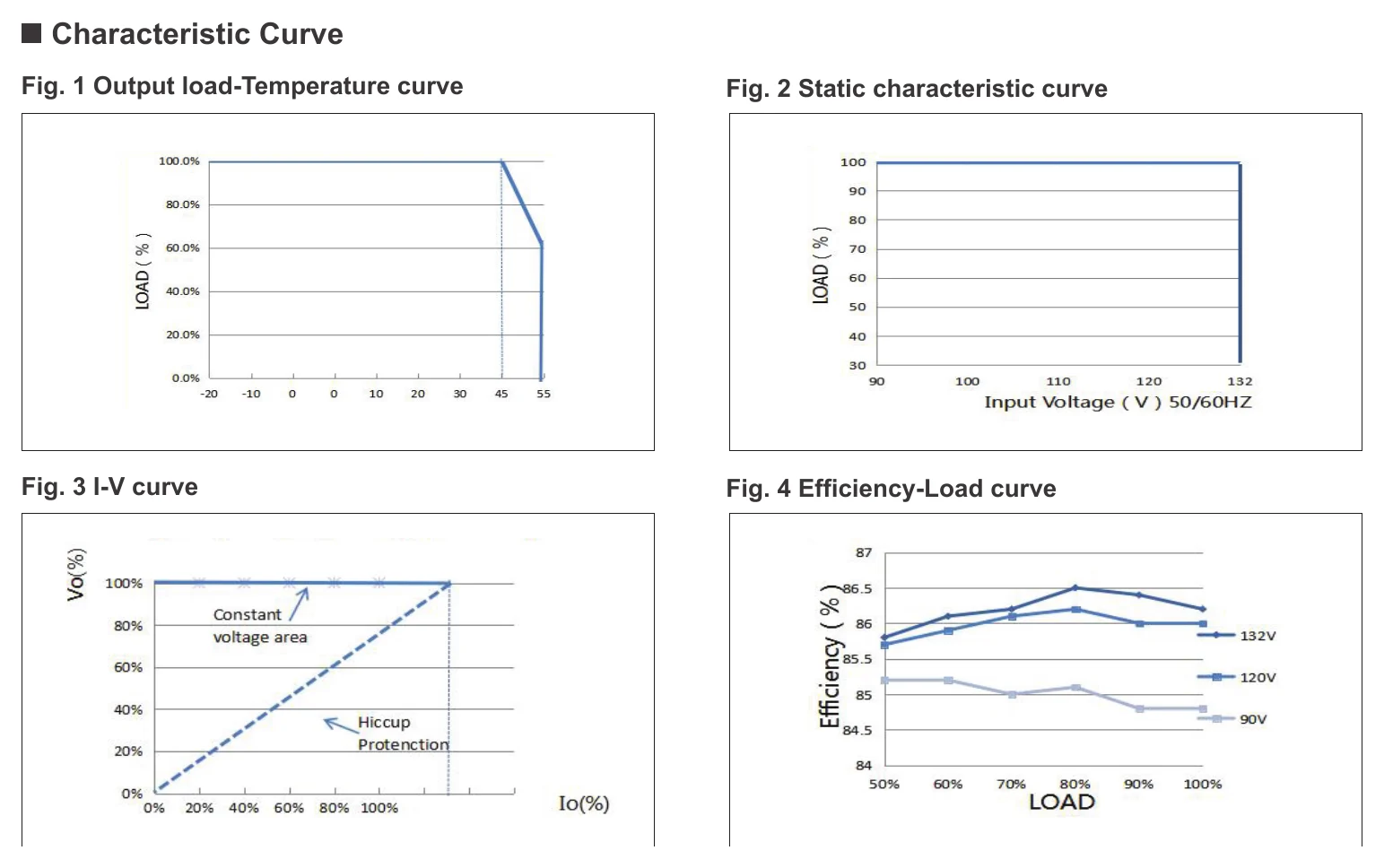

EV-SE-15-24US Characteristic Curve
Characteristic Curve

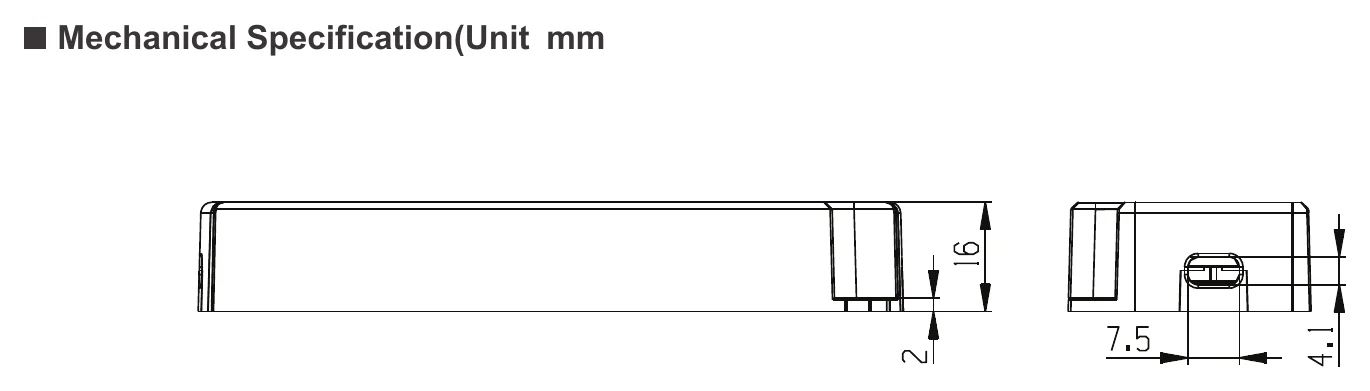

EV-SE-15-24US Mechanical Specification (Unit mm)
Mechanical Specification (Unit mm)

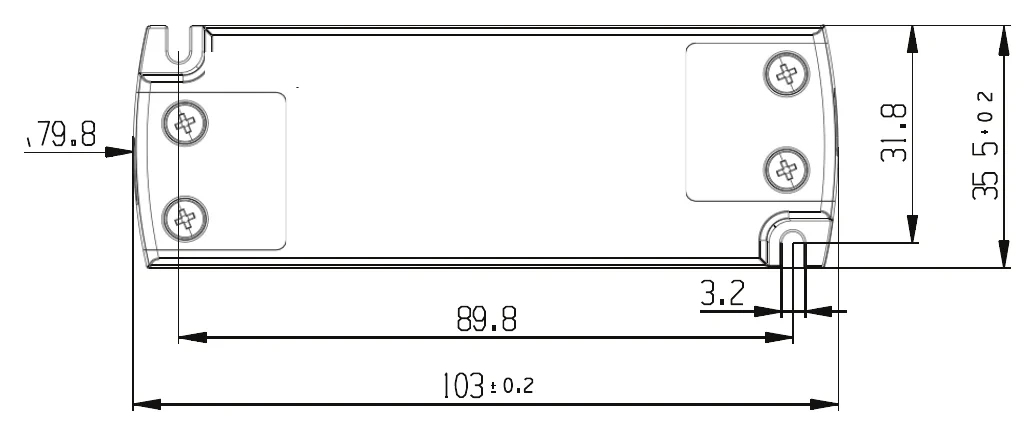

EV-SE-15-24US Mechanical Specification (Unit mm) (2)
Mechanical Specification (Unit mm) (2)

Downloads

FAQ

What is this LED driver used for?

It is a US standard indoor ultra-thin constant voltage LED driver designed for LED lighting, such as indoor bathroom mirror lamps and other lighting lamps.

What are the output specifications?

It provides a 24VDC output with a rated current of 0-0.625A and a maximum output power of 15W. The typical efficiency is 86%.

What is the input voltage range?

The input voltage range is 90Vac to 132Vac at 47-63Hz. It is designed for US standard input voltage.

What is the IP rating and operating temperature?

The unit has an IP20 rating, making it suitable for indoor use only. The working ambient temperature range is -20°C to +45°C.

Does it require a fan?

No, it uses natural cooling. It does not have a built-in fan.

What protections are included?

It includes short circuit, overload, and over voltage protection. Short circuit protection uses hiccup mode with auto-recovery.

Is it certified?

Yes, it is UL/CUL certified to UL8750 and complies with FCC Part 15 for EMC.

What is the warranty period?

The product comes with a 5-year warranty.
