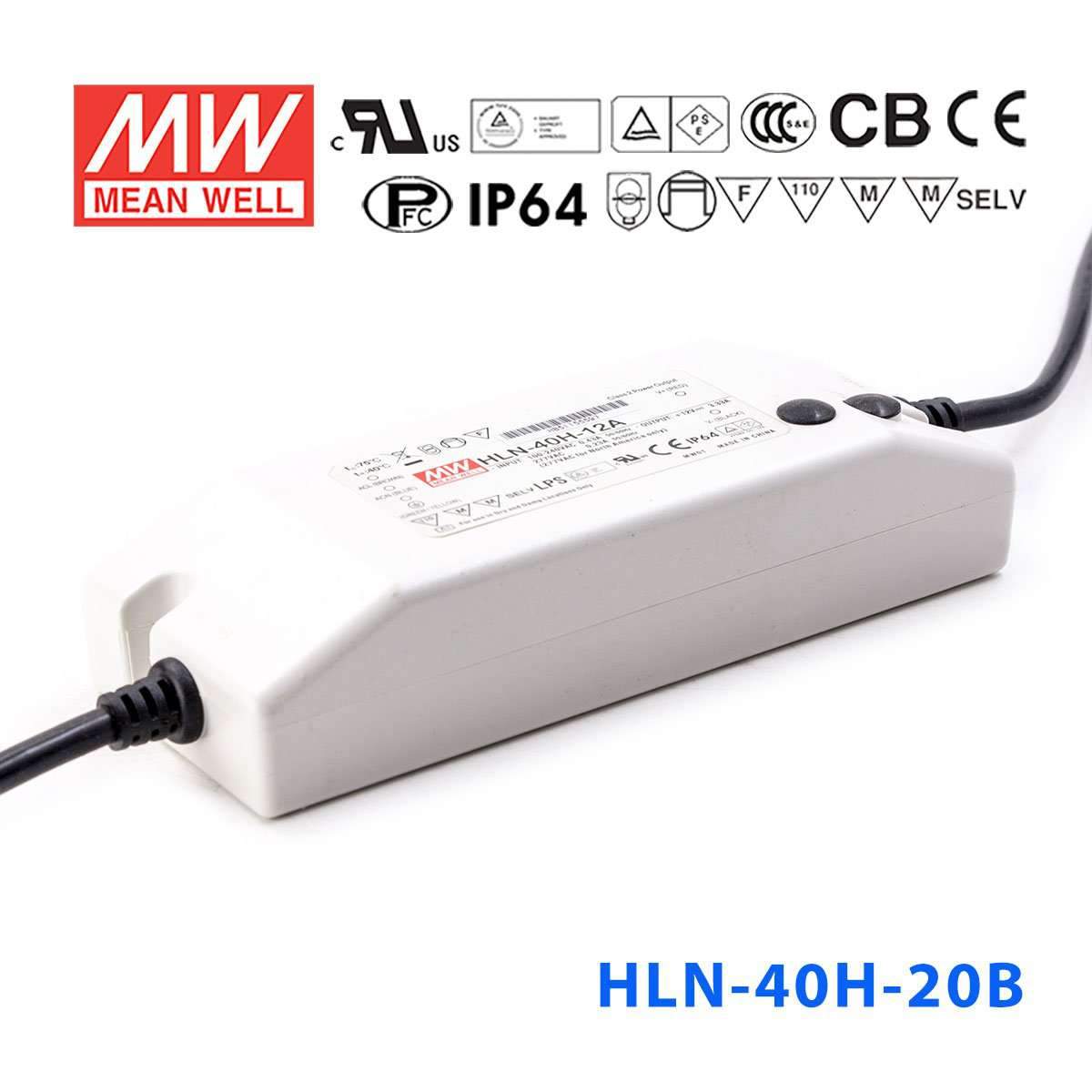

Mean Well HLN-40H-20B Power Supply 40W 20V - IP64, Dimmable 2A

Name: Mean Well HLN-40H-20B Power Supply 40W 20V - IP64, Dimmable 2A
Brand: Mean Well
SKU: HLN-40H-20B
Price: 40.7 USD
Availability: InStock

fully isolated plastic caseIP64suitable for signage applicationsClass 2 power unit

SKU HLN-40H-20B

$40.70 USD

Shipping calculated at checkout.

Available to order

Overview

HLN-40H-20B is the 20V output model of this series: rated current 2A, rated power 40W, typical efficiency 87.5%.

Features

Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
Fully isolated plastic case with IP64 level
Class 2 power unit
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Suitable for LED lighting, Industrial Lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp locations or outdoor application
3 years warranty

Specifications

HLN-40H-20BSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 20V
CONSTANT CURRENT REGION^Note.4: 12 ~ 20V
RATED CURRENT: 2A
RATED POWER: 40W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE^Note.6: 17 ~ 22V
CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer A type only
CURRENT ADJ. RANGE: 1.2 ~ 2A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.7: 500ms, 80ms at full load 230VAC / 115VAC
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.): 87.5%
AC CURRENT (Typ.): 0.43A / 115VAC 0.24A / 230VAC 0.23A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT^Note.4: 95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 23 ~ 30V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -40 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.0-08 , BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent, IP64, EAC TP TC 004 approved ; design refer to UL60950-1, BS EN/EN60335-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧60% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), EAC TP TC 020

OTHERS

MTBF: 3396.4K hrs min. Telcordia SR-332(Bellcore) ; 346.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 161*61.5*35mm (L*W*H)
PACKING: 0.35Kg;32pcs/12.2Kg/1.10CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. A type only.
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLN-40H-20B Mechanical Specification — Mechanical Specification

HLN-40H-20B Block Diagram — Block Diagram

HLN-40H-20B Derating Curve — Derating Curve

HLN-40H-20B Power Factor Characteristic — Power Factor Characteristic

HLN-40H-20B EFFICIENCY vs LOAD (48V Model) — EFFICIENCY vs LOAD (48V Model)

HLN-40H-20B H L N - 4 0 H series — H L N - 4 0 H series

HLN-40H-20B H L N - 4 0 H series (2) — H L N - 4 0 H series (2)

HLN-40H-20B DIMMING OPERATION(for B-type only) — DIMMING OPERATION(for B-type only)

HLN-40H-20B ※ Please DO NOT connect "DIM-" to "-V". — ※ Please DO NOT connect "DIM-" to "-V".

Downloads

Certificates4

UL Certificate (HLN-40)(EN) PDF Download

CB Certificate (HLN-40)(EN) PDF Download

EMC Certificate (HLN-40)(EN) PDF Download

TUV Certificate (HLN-40)(EN) PDF Download

Test reports1

Test Report(HLN-40-20)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLN-40H-20B for 20V sign cabinet lighting?

Yes, this model is suitable for signage applications when the lighting load requires 20V and stays within 40W total output. It can deliver up to 2A and operates across a 12-20V constant-current range.

Is the HLN-40H-20B a good fit for 20V edge-lit display lighting?

It can be, provided the display lighting is designed for 20V operation and does not exceed 40W or 2A. The IP64 enclosure is also useful for enclosed display lighting projects.

Can this driver run 20V architectural accent lighting?

Yes, if the accent lighting product matches 20V output and stays within the 40W rating. This unit is better suited to smaller 20V lighting loads because its maximum output current is 2A.

Would the HLN-40H-20B work for lighting in dusty or splash-prone commercial areas?

It can suit 20V lighting in those conditions because the enclosure is rated IP64. The stated operating temperature range is -40°C to +50°C, so the application should remain within that range.

How much 20V LED strip can the HLN-40H-20B handle?

The driver's maximum output is 40W at 20V, with up to 2A available. Estimated strip length = 40W divided by your strip's rated power per meter, and you should check your strip rated power per meter before sizing.

Can the HLN-40H-20B be used outdoors?

The IP64 rating supports use where dust and splashing water are expected, but it is not a submersible rating. For outdoor use, keep the ambient temperature within -40°C to +50°C.
