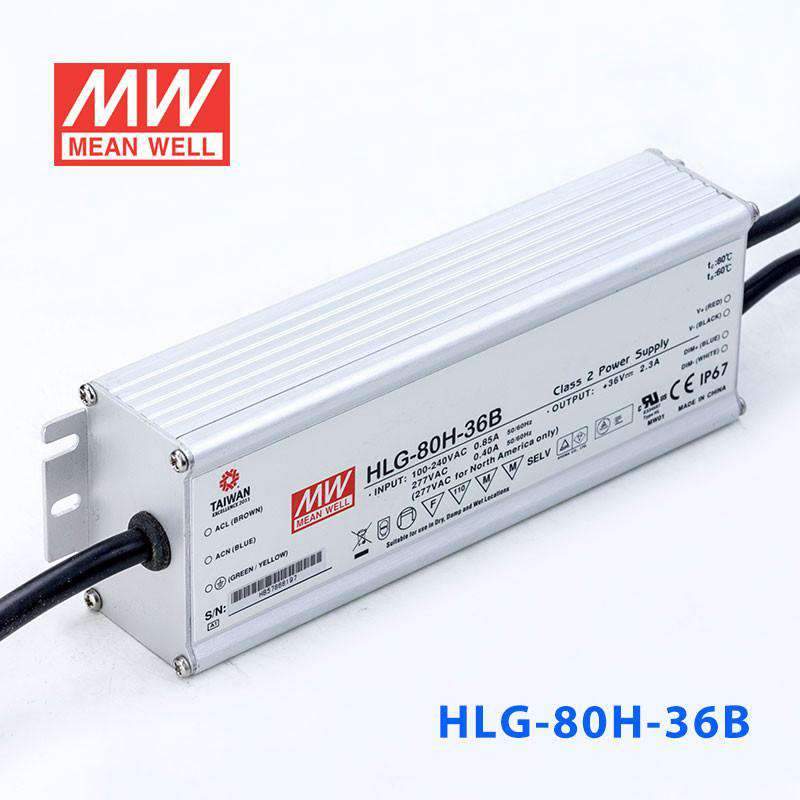

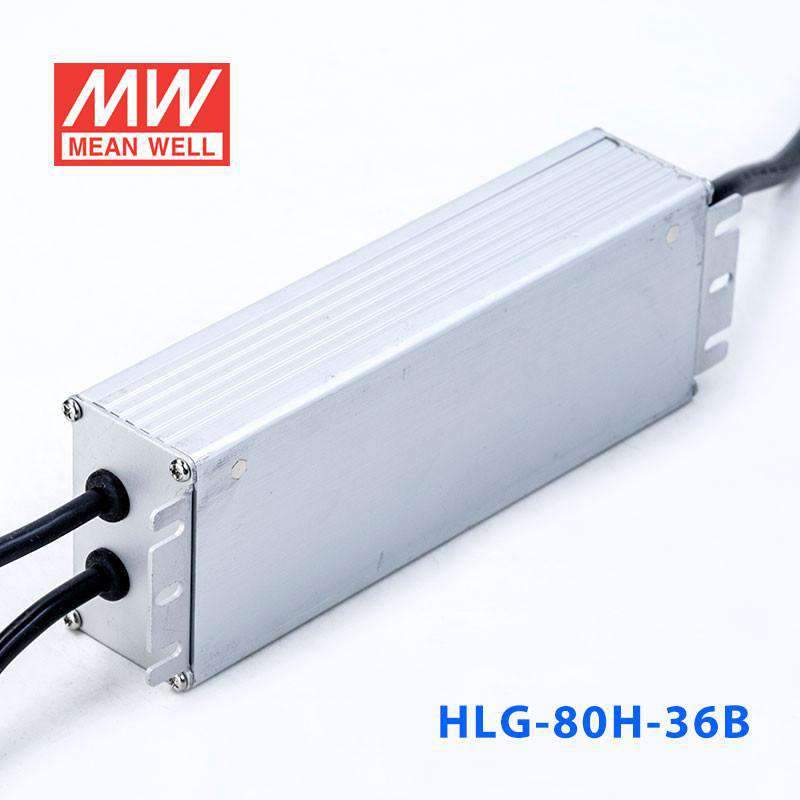

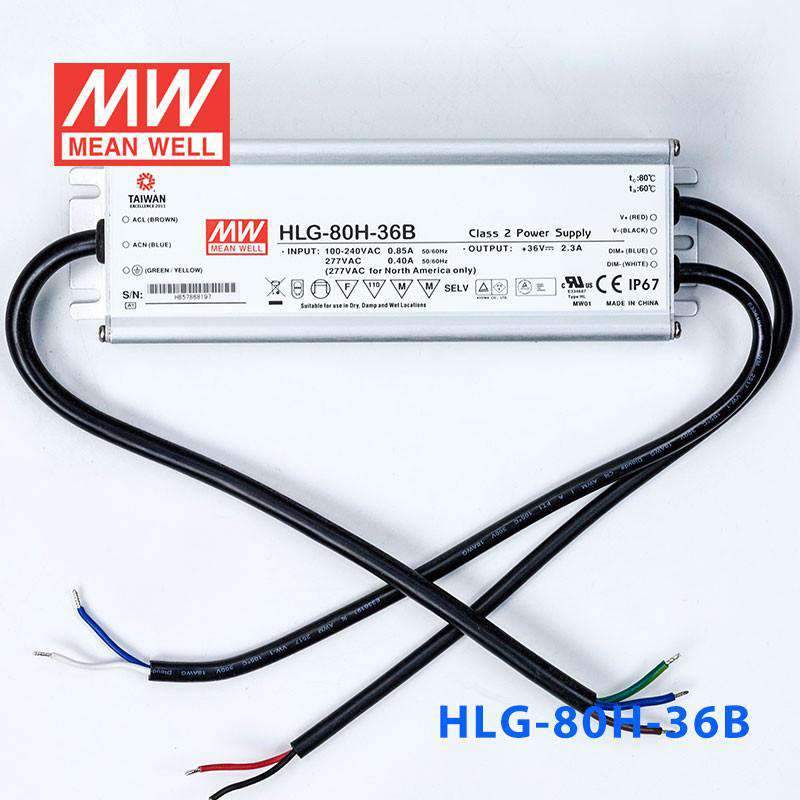

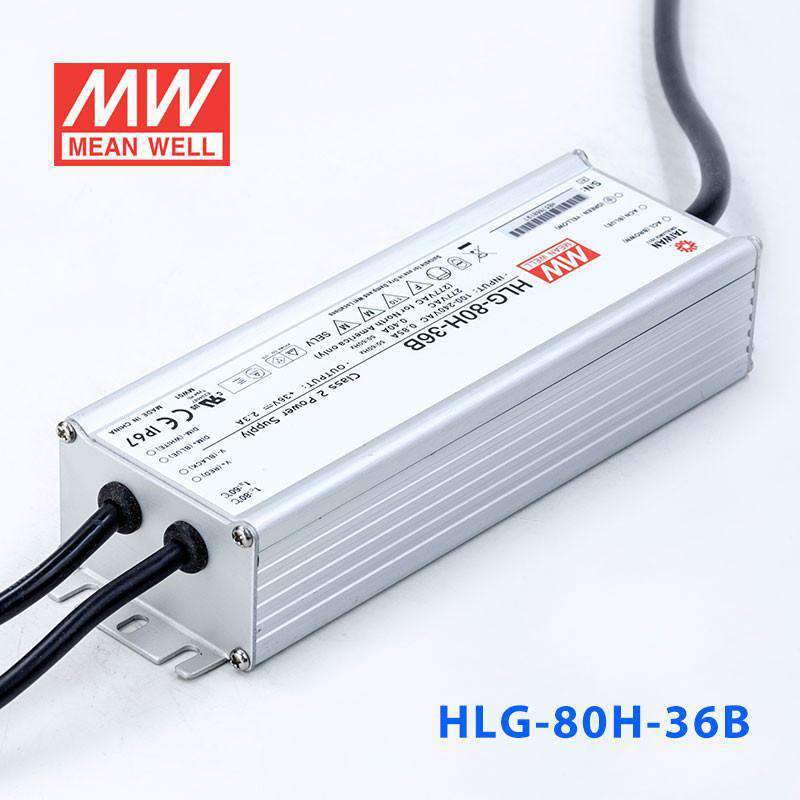

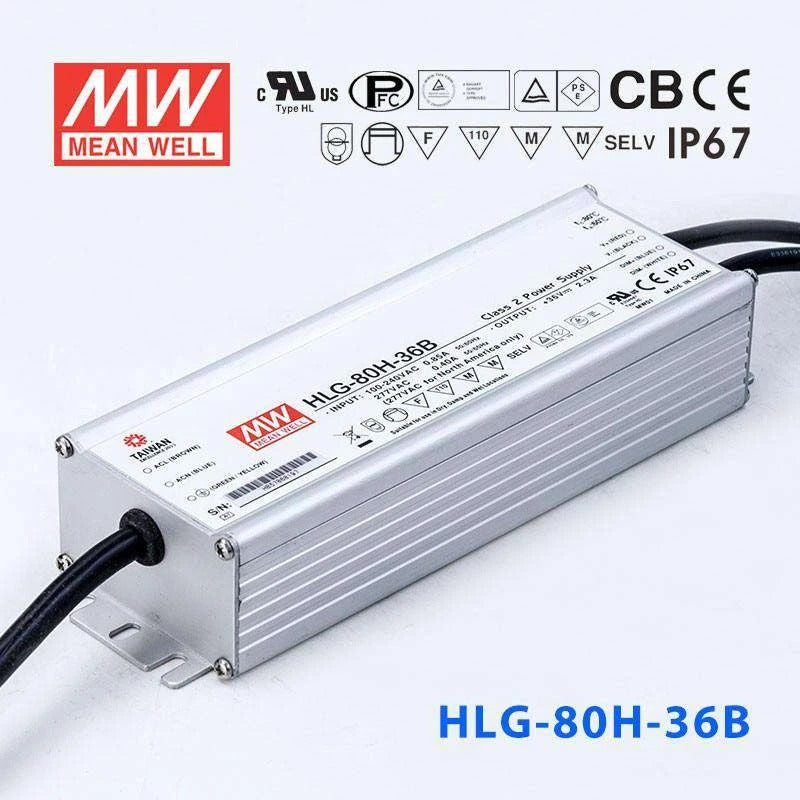

Mean Well HLG-80H-36B 80W 36V Power Supply - Dimmable

Name: Mean Well HLG-80H-36B Power Supply 80W 36V - Dimmable 2.3A
Brand: Mean Well
SKU: HLG-80H-36B
Price: 47.55 USD
Availability: InStock

Overview

HLG-80H-36B is the 36V output model of this series: rated current 2.3A, rated power 82.8W, typical efficiency 91%.

HLG-80H series is a 80W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-80H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-80H-36BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.4: 21.6 ~ 36V
RATED CURRENT: 2.3A
RATED POWER: 82.8W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A-Type only (via built-in potentiometer) 33 ~ 40V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1.38 ~ 2.3A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1200ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
INRUSH CURRENT (Typ.): COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 49V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type"HL"), CSA C22.2 No. 250.0-08, UL8750 LISTED for HLG-80H-□BL;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 J61347-1, J61347-2-13(except for BL-type), GB/T19510.1,independent, GB/T19510.213,EAC TP TC 004, BIS IS15885(for 36A,54A only), IP65 or IP67,KC61347-1,KC61347-2-13(except for AB,BL-type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%); BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547 (except for BL type), EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), KS C 9815, KS C 9547 (except for BL type),EAC TP TC 020

OTHERS

MTBF: 2992.9K hrs min. Telcordia SR-332 (Bellcore) ; 289.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195.6*61.5*38.8mm (L*W*H)
PACKING: 0.84Kg; 16pcs/14.4Kg/0.54CUFT

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-80H-36B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-80H-36B DIMMING OPERATION — DIMMING OPERATION

HLG-80H-36B Illustration (page 5) — Illustration (page 5)

HLG-80H-36B OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-80H-36B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-80H-36B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-80H-36B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-80H-36B Dimensions (mm) — Dimensions (mm)

HLG-80H-36B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates3

UL Certificate (HLG-80H)(EN) PDF Download

TUV Certificate (HLG-80H)(EN) PDF Download

EMC Certificate (HLG-80H)(EN) PDF Download

Test reports1

Test Report (HLG-80H-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-80H-36B to power 36V LED strips in a fully exposed outdoor installation?

Yes. The HLG-80H-36B delivers 36V at up to 2.3A (80W) and carries an IP67 rating, and its metal housing is designed for indoor and outdoor applications, so it can be mounted outdoors exposed to rain and snow. Its case temperature (Tcase) range is -40°C to +80°C.

Is the HLG-80H-36B suitable for dimmable 36V outdoor LED signage?

Yes. The B suffix indicates a 3-in-1 dimming input (1-10V, PWM or resistance), allowing you to control brightness on 36V sign modules from an external dimmer. At 80W with IP67 waterproof protection, it is well suited for outdoor channel letters and light-box signs.

Can the HLG-80H-36B drive 36V LED landscape lighting fixtures?

Yes. With 80W at 36V output and IP67 waterproof construction, the HLG-80H-36B is a strong fit for landscape path lights, garden uplights, or architectural wash fixtures that run on 36V. The dimming input also lets you reduce brightness for evening ambiance.

How many meters of 36V LED strip can the HLG-80H-36B handle?

Divide 80W by your strip's power consumption per meter. For instance, a 36V strip rated at 10W/m would allow up to 8 meters (80W / 10W per meter = 8m). Always check your strip's rated power per meter and keep total draw at or below 80W.

Can the HLG-80H-36B withstand submersion during flooding or heavy rain pooling?

The HLG-80H-36B is IP67 rated, but the sheet does not specify a submersion depth or duration, so flooding or pooling water is not a specified operating condition. Mount it where pooling water cannot reach it and follow the waterproof installation cautions in MEAN WELL's user manual.
