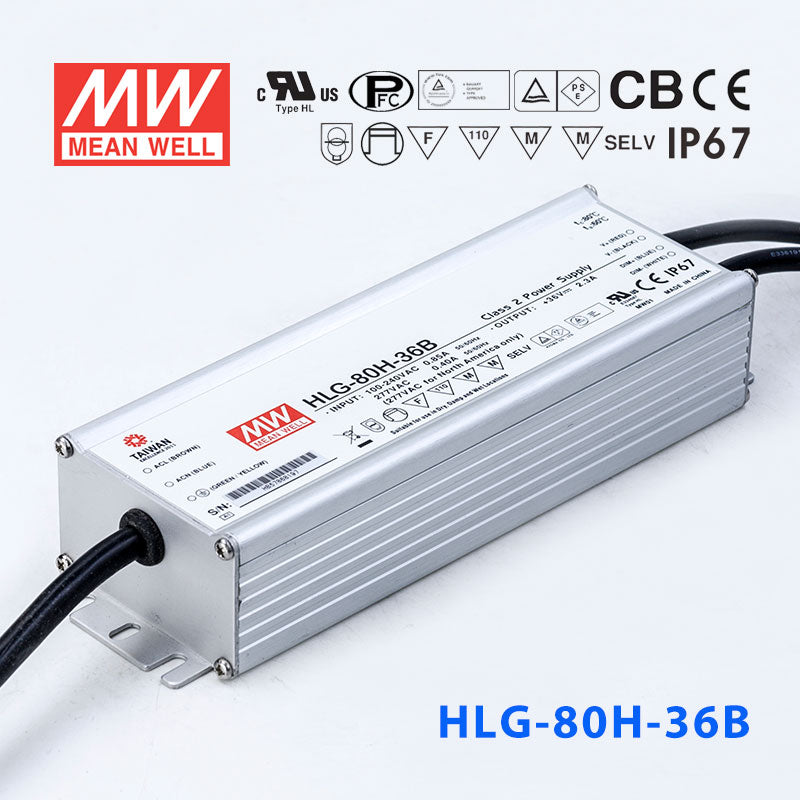

Mean Well HLG-80H-36AB LED Driver - 80W 36V - Adjustable and Dimmable

Name: Mean Well HLG-80H-36AB Power Supply 80W 36V - Adjustable and Dimmable 2.3A
Brand: Mean Well
SKU: HLG-80H-36AB
Price: 48.6 USD
Availability: InStock

Overview

HLG-80H-36AB is the 36V output model of this series: rated current 2.3A, rated power 82.8W, typical efficiency 91%.

HLG-80H series is a 80W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-80H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-80H-36ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.4: 21.6 ~ 36V
RATED CURRENT: 2.3A
RATED POWER: 82.8W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A-Type only (via built-in potentiometer) 33 ~ 40V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1.38 ~ 2.3A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1200ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
INRUSH CURRENT (Typ.): COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 49V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type"HL"), CSA C22.2 No. 250.0-08, UL8750 LISTED for HLG-80H-□BL;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 J61347-1, J61347-2-13(except for BL-type), GB/T19510.1,independent, GB/T19510.213,EAC TP TC 004, BIS IS15885(for 36A,54A only), IP65 or IP67,KC61347-1,KC61347-2-13(except for AB,BL-type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%); BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547 (except for BL type), EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), KS C 9815, KS C 9547 (except for BL type),EAC TP TC 020

OTHERS

MTBF: 2992.9K hrs min. Telcordia SR-332 (Bellcore) ; 289.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195.6*61.5*38.8mm (L*W*H)
PACKING: 0.84Kg; 16pcs/14.4Kg/0.54CUFT

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-80H-36AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-80H-36AB DIMMING OPERATION — DIMMING OPERATION

HLG-80H-36AB Illustration (page 5) — Illustration (page 5)

HLG-80H-36AB OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-80H-36AB STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-80H-36AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-80H-36AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-80H-36AB Dimensions (mm) — Dimensions (mm)

HLG-80H-36AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates3

UL Certificate (HLG-80H)(EN) PDF Download

TUV Certificate (HLG-80H)(EN) PDF Download

EMC Certificate (HLG-80H)(EN) PDF Download

Test reports1

Test Report (HLG-80H-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-80H-36AB to power 36V LED strip lighting in a sheltered outdoor area?

Yes. The HLG-80H-36AB outputs 36V at up to 2.3A (80W) and has an IP65-rated metal housing designed for indoor and outdoor applications, making it suitable for covered patios, soffits, and canopy installations. For fully exposed rain locations, consider the IP67-rated HLG-80H-36B instead.

Is the HLG-80H-36AB a good driver for dimmable 36V LED signage?

Yes. The HLG-80H-36AB includes both a built-in potentiometer for output current adjustment and a 3-in-1 dimming input (1-10V, PWM or resistance), so you can fine-tune brightness for 36V channel letters or light boxes. Its 80W capacity and wide 90-305VAC input handle most commercial mains supplies.

Can I dim 36V LED panel lights with the HLG-80H-36AB using a 1-10V controller?

Yes. The AB suffix means this model accepts 1-10V, PWM and resistance dimming signals, allowing smooth brightness control of 36V LED panels. The built-in potentiometer also lets you trim the output current (1.38-2.3A) to match your panel's requirements; the constant-current region is 21.6-36V.

How many meters of 36V LED strip can the HLG-80H-36AB power?

Divide 80W by your strip's rated power per meter. For example, a strip drawing 8W/m would allow up to 10 meters (80W / 8W per meter = 10m). Always check your strip's rated power per meter and keep the total load at or below 80W.

What is the difference between the HLG-80H-36, 36A, 36AB, and 36B models?

All four share the same 80W / 36V / 2.3A core specs and a CC region of 21.6-36V. The base HLG-80H-36 has no adjustment or dimming and is IP67. The -36A adds output voltage/current adjustment via potentiometers (IP65). The -36AB adds output current adjustment and 3-in-1 dimming (IP65). The -36B adds the dimming input only and retains IP67.

Can I mount the HLG-80H-36AB in a dusty industrial environment?

Yes. Its IP65-rated metal housing is designed for indoor and outdoor applications. Its -40°C to +80°C case temperature (Tcase) range covers temperature extremes found in factories, workshops, and warehouses, with load derating at higher ambient temperatures.
