Mean Well HLG-60H-36AB Power Supply 60W 36V - Adjustable and Dimmable | HLG Series - Constant Voltage + Constant Current LED Driver - United States

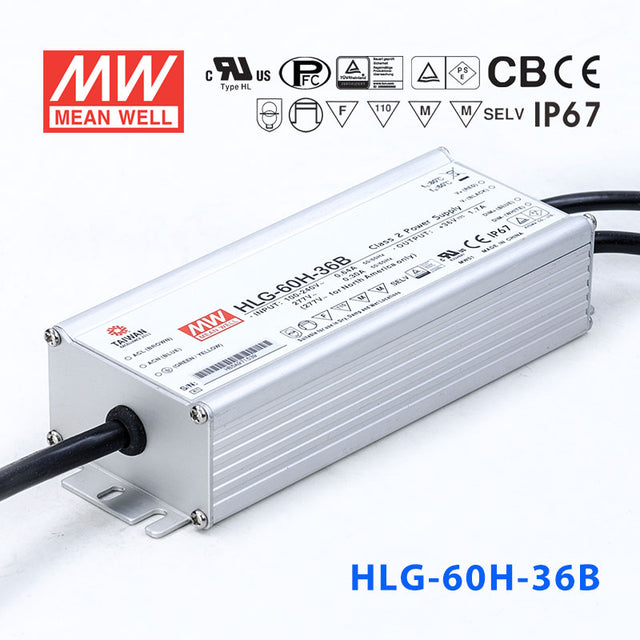

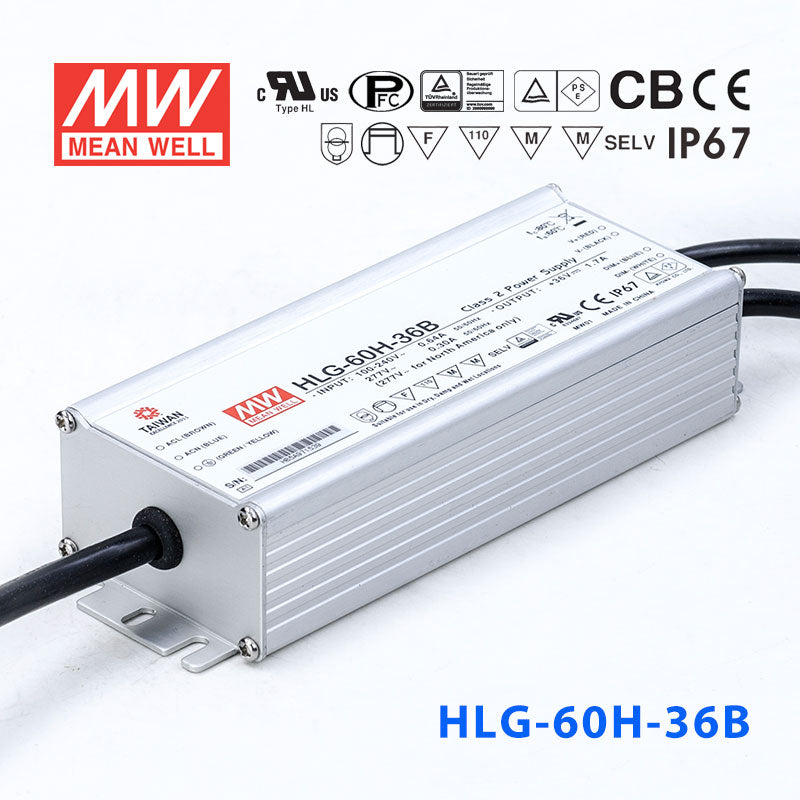

Name: Mean Well HLG-60H-36AB Power Supply 60W 36V - Adjustable and Dimmable 1.7A
Brand: Mean Well
SKU: HLG-60H-36AB
Price: 41.96 USD
Availability: InStock

Overview

HLG-60H-36AB is the 36V output model of this series: rated current 1.7A, rated power 61.2W, typical efficiency 90%.

HLG-60H series is a 60W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-60H operates from 90～305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-60H-36ABSpecifications from the official datasheet (2025-02-04 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.4: 21.6 ~ 36V
RATED CURRENT: 1.7A
RATED POWER: 61.2W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 33 ~ 40V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1 ~ 1.7A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT^Note.4: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 49V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type"HL"), CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13 (except for AB-type), IP65 or IP67 approved ; J61347-1, J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),KS C 9815, KS C 9547, EAC TP TC 020

OTHERS

MTBF: 3396.9K hrs min. Telcordia SR-332 (Bellcore) ;345.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*61.5*36.8mm (L*W*H)
PACKING: 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-60H-36AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-60H-36AB DIMMING OPERATION — DIMMING OPERATION

HLG-60H-36AB Illustration (page 5) — Illustration (page 5)

HLG-60H-36AB OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-60H-36AB STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-60H-36AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-60H-36AB LIFETIME(Kh) — LIFETIME(Kh)

HLG-60H-36AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-60H-36AB Dimensions (mm) — Dimensions (mm)

HLG-60H-36AB H L G - 6 0 H series — H L G - 6 0 H series

HLG-60H-36AB H L G - 6 0 H series (2) — H L G - 6 0 H series (2)

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (HLG-60H)(EN) PDF Download

TUV Certificate (HLG-60H)(EN) PDF Download

EMC Certificate (HLG-60H)(EN) PDF Download

PSE Certificate(HLG-60H)(EN) PDF Download

Test reports1

Test Report(HLG-60H-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-60H-36AB to power dimmable 36V LED strip in a commercial display?

Yes. The HLG-60H-36AB delivers 61.2W at 36V with both output adjustment and 1-10V/PWM dimming input. You can fine-tune the voltage to match your strip's requirements and control brightness through a compatible dimmer, ideal for retail displays, gallery lighting, or hospitality accent lighting.

Is the HLG-60H-36AB suitable for 36V LED signage that needs scheduled dimming?

Yes. The built-in 1-10V/PWM dimming input can be driven by a timer or smart controller to reduce sign brightness during nighttime hours. At 61.2W and 36V with a CC range of 21.6-36V, it handles typical small-format sign modules while providing full dimming flexibility.

Can the HLG-60H-36AB drive 36V architectural LED fixtures with tunable output?

Yes. The adjustable output lets you set the precise voltage and current via built-in potentiometers, while the dimming input provides real-time brightness control. This dual adjustment capability suits architectural fixtures where both calibration and scene-setting are required.

How many meters of 36V LED strip can the HLG-60H-36AB power?

Divide the 61.2W rating by your strip's rated power per meter. A 36V strip drawing 12W/m allows about 5.1 meters (61.2W / 12W per meter). A strip at 7.5W/m allows about 8.2 meters. Always verify your strip's rated power per meter and ensure the total stays within 61.2W.

Can the HLG-60H-36AB be installed in a covered outdoor location like a gazebo?

Yes. With an IP65 rating, it is protected against low-pressure water jets and dust ingress, so a gazebo, covered deck, or similar sheltered outdoor spot is appropriate. For fully exposed locations subject to heavy downpours, the IP67-rated HLG-60H-36B offers stronger water protection.

What are the differences between the HLG-60H-36, 36A, 36AB, and 36B variants?

All share 61.2W / 36V / 1.7A core specs and a CC range of 21.6-36V. The base HLG-60H-36 has fixed output and IP67 waterproofing. The -36A adds potentiometer adjustment for voltage and current (IP65). The -36AB adds both adjustment and 1-10V/PWM dimming (IP65). The -36B has dimming only and retains IP67.
