Mean Well HLG-320H-C1750B Power Supply 320.25W 1750mA - Dimmable

Name: Mean Well HLG-320H-C1750B Power Supply 320.25W 1750mA - Dimmable
Brand: Mean Well
SKU: HLG-320H-C1750B
Price: 99.54 USD
Availability: InStock

Overview

HLG-320H-C1750B is the model of this series: rated current 1750mA, rated power 320.25W, typical efficiency 94%.

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C1750BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1750mA
RATED POWER: 320.25W
CONSTANT CURRENT REGION^Note.2: 91 ~ 183V
OPEN CIRCUIT VOLTAGE (max.): 187V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 875 ~ 1750mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 192 ~ 211V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP65 or IP67 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

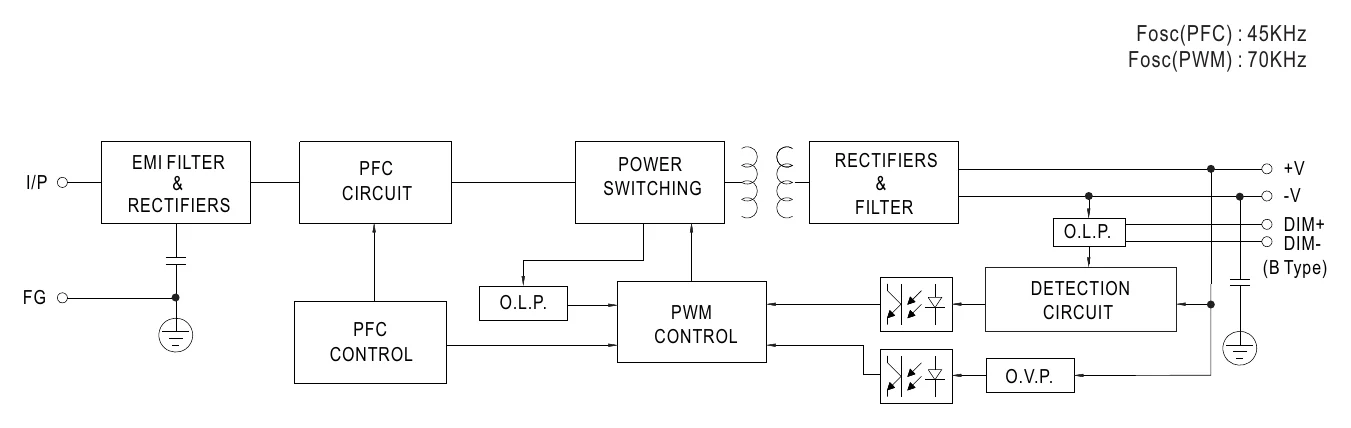

HLG-320H-C1750B BLOCK DIAGRAM — BLOCK DIAGRAM

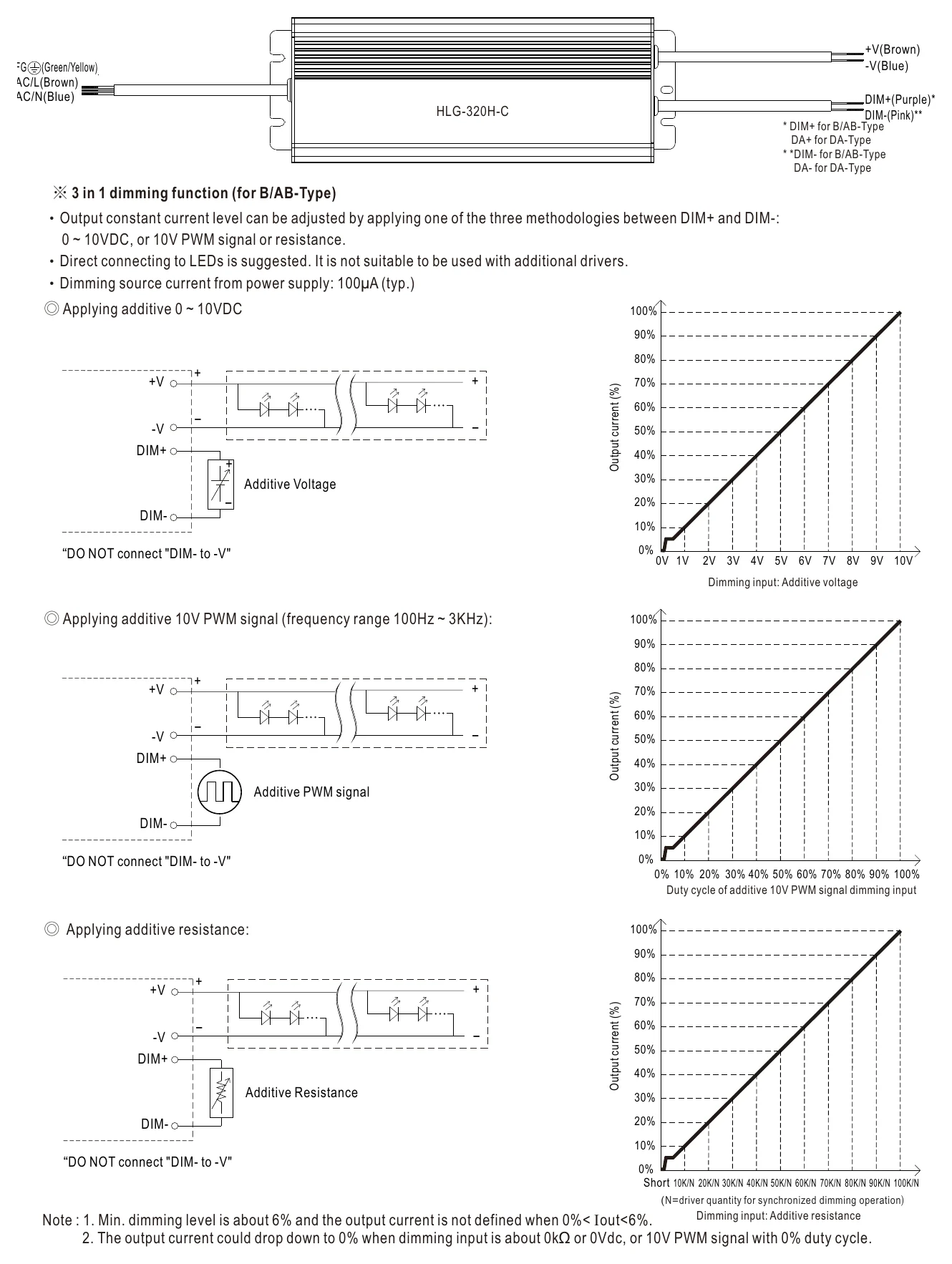

HLG-320H-C1750B DIMMING OPERATION — DIMMING OPERATION

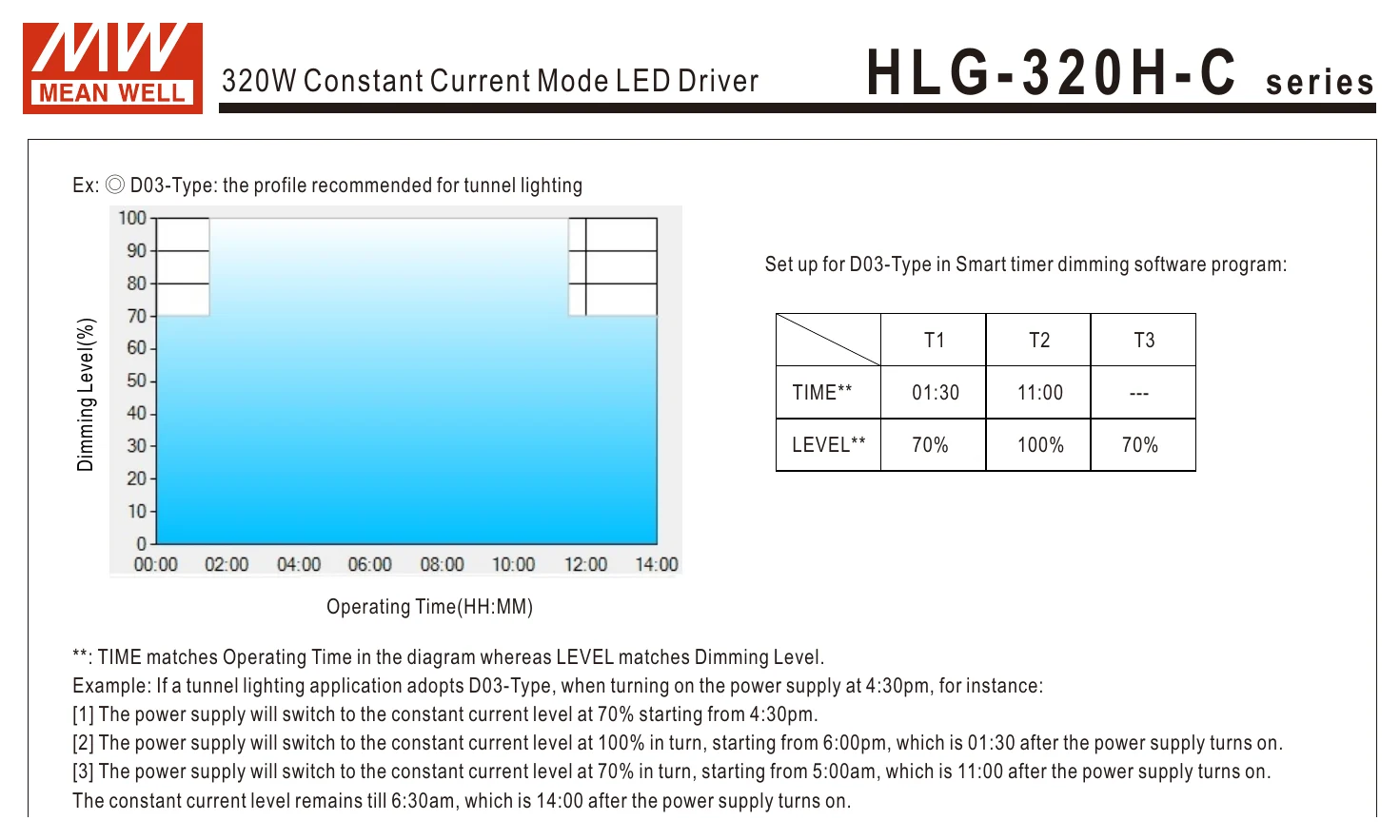

HLG-320H-C1750B 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

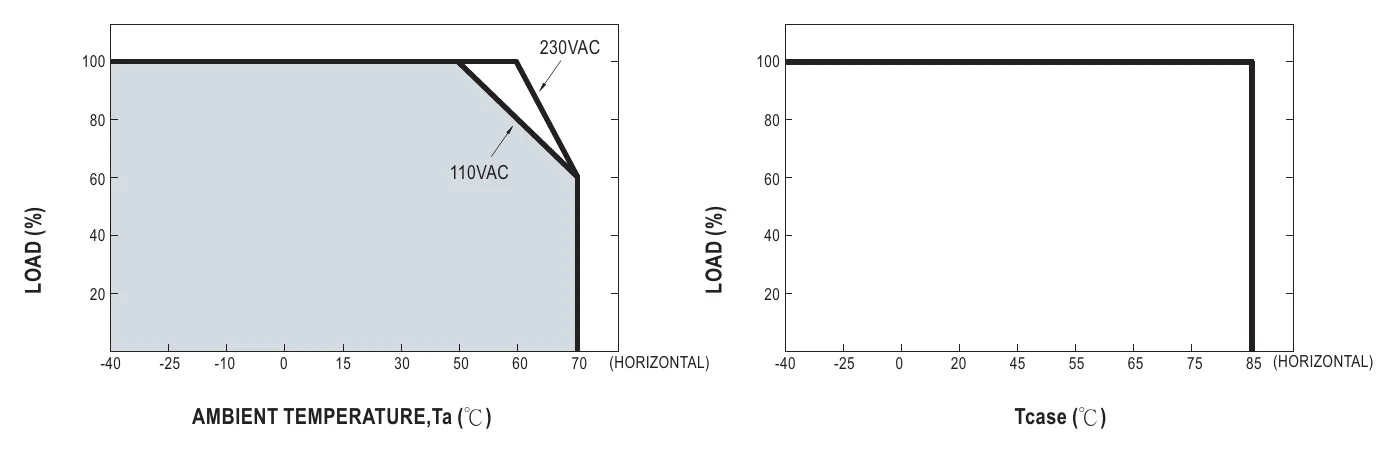

HLG-320H-C1750B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

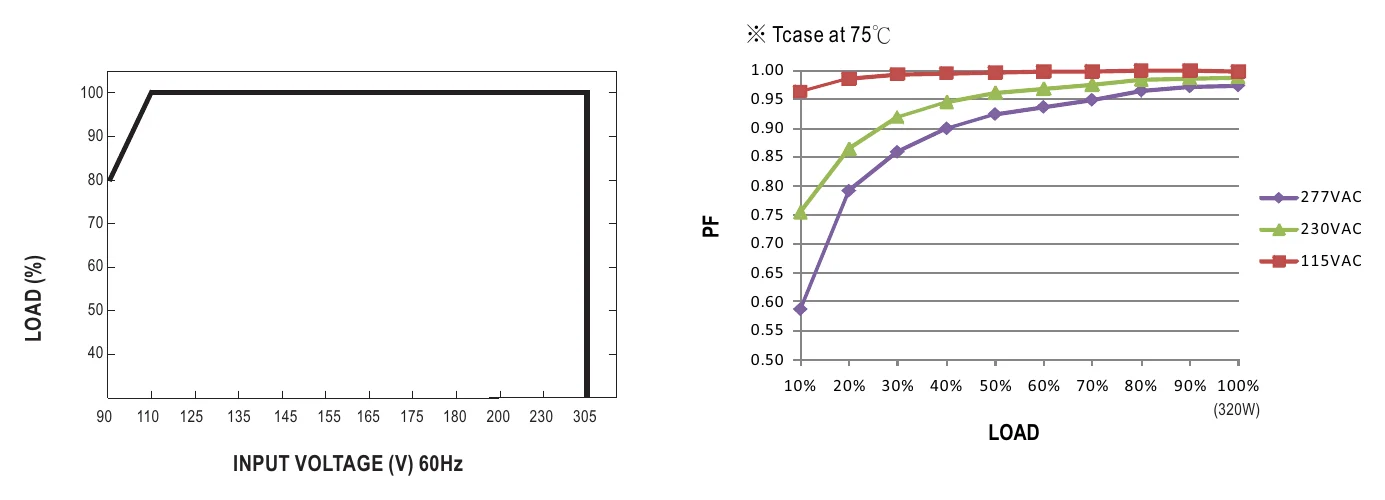

HLG-320H-C1750B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

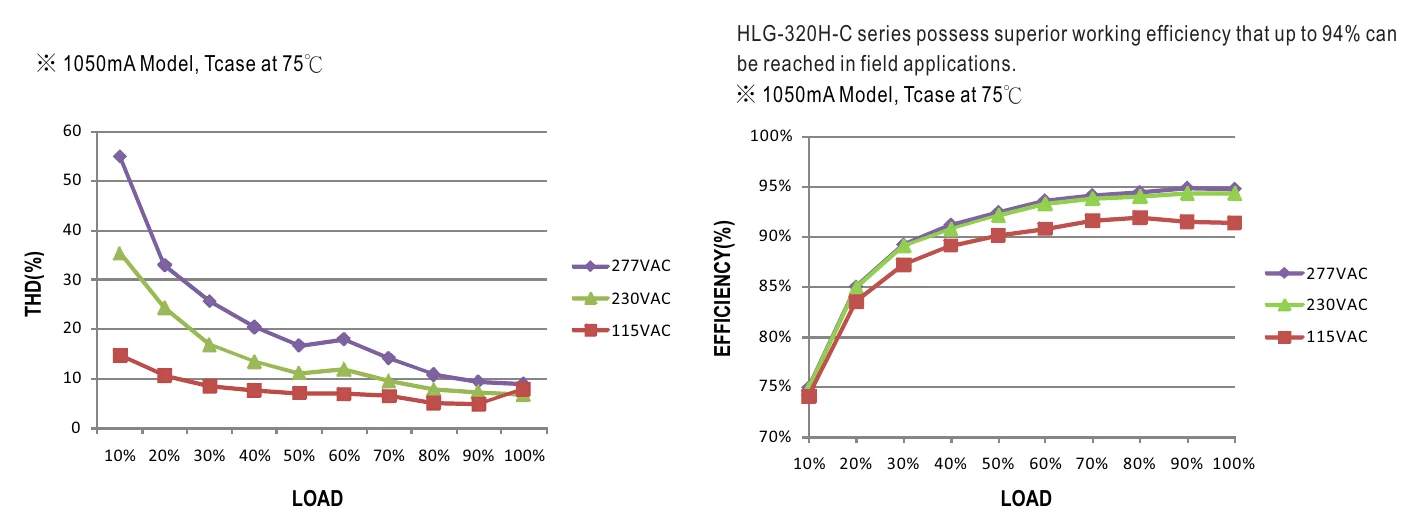

HLG-320H-C1750B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

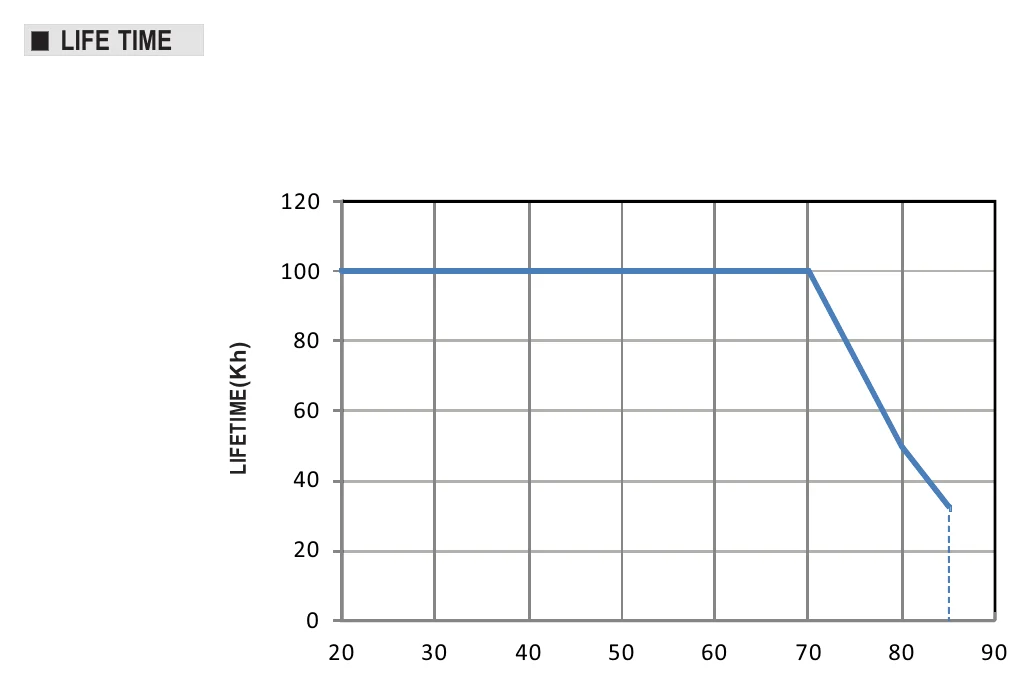

HLG-320H-C1750B LIFETIME(Kh) — LIFETIME(Kh)

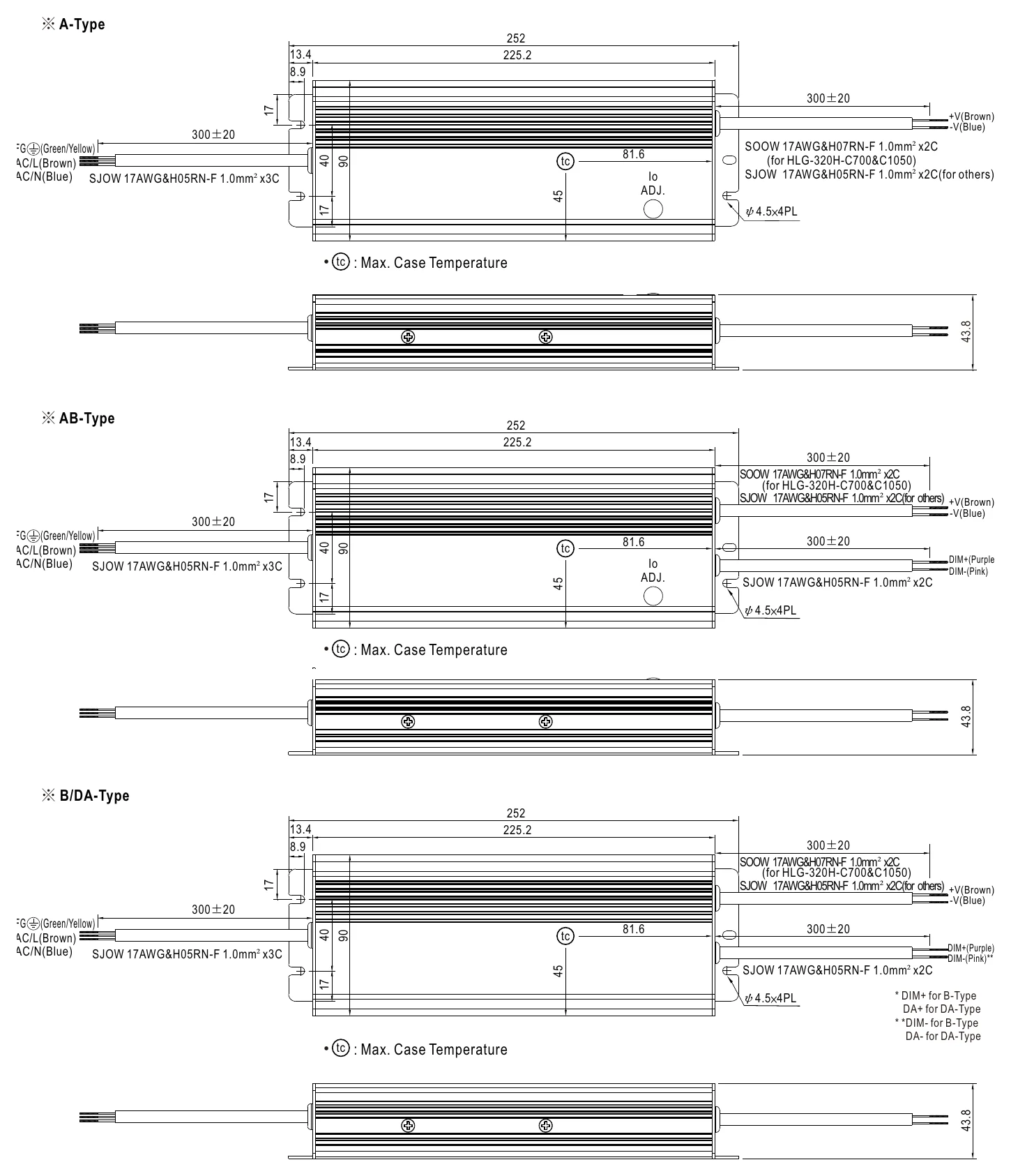

HLG-320H-C1750B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

Certificates4

UL Certificate(HLG-320H-C)(EN) PDF Download

CB Certificate(HLG-320H-C)(EN) PDF Download

EMC Certificate(HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C1750)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C1750B to drive dimmable LED high-bay lights in a sports facility?

Yes. The HLG-320H-C1750B delivers 1750mA constant current at 320.25W and includes a 3-in-1 dimming input (0-10VDC, 10V PWM, or resistance). This allows you to reduce light levels during practice sessions and ramp up to full brightness for competitions. The LED modules must have a string voltage within the 91-183V range.

Is the HLG-320H-C1750B suitable for LED retail display lighting with brightness control?

Yes, provided your LED fixtures require 1750mA and the string voltage falls within 91-183V. The dimming input accepts 0-10VDC, 10V PWM, or resistance, letting you adjust ambiance for product displays. At 320.25W, it can handle substantial LED loads across multiple fixture strings wired in series.

Can the HLG-320H-C1750B power LED luminaires in a workshop or factory floor?

Yes. The 320.25W capacity and 1750mA drive current suit industrial LED luminaires with string voltages in the 91-183V range. The dimming function via 0-10VDC, PWM, or resistance allows task-based lighting control. The driver's -40°C to +85°C case temperature (Tcase) range and IP65/IP67-approved enclosure handle typical industrial conditions.

Can I use the HLG-320H-C1750B for outdoor architectural LED accent lighting?

It can work in sheltered outdoor locations. The HLG-320H-C series is IP65 or IP67 approved against dust and water, making it suitable for installation inside weatherproof junction boxes or under eaves. For fully exposed outdoor positions, confirm this version's IP rating first.

How do I size the LED string for the HLG-320H-C1750B?

The driver outputs a constant 1750mA and adjusts its voltage automatically within the 91-183V range to maintain that current. Add up the forward voltages of all LEDs in your series string at 1750mA and confirm the total falls within this range. The exact number of LEDs depends on each LED's individual forward voltage.

What dimming methods does the HLG-320H-C1750B support?

The HLG-320H-C1750B accepts three dimming methods between DIM+ and DIM-: 0-10VDC, a 10V PWM signal (100Hz-3kHz), or resistance; the minimum dimming level is about 6%. It does not include output current adjustment via potentiometer — for that feature combined with dimming, you would need the HLG-320H-C1750AB. The -B variant suits systems where external dimming control is sufficient.
